Autofeed units for core drills

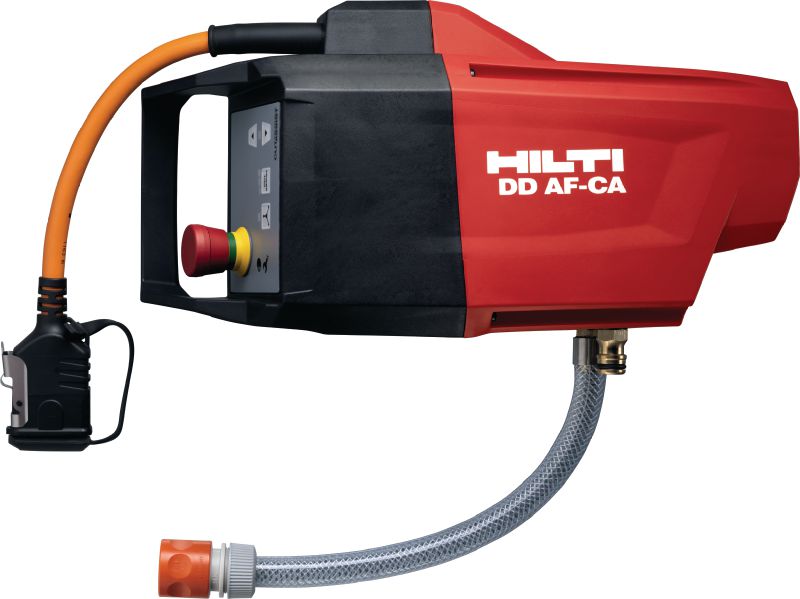

Autofeed unit DD AF-CA 220-480V #2095123

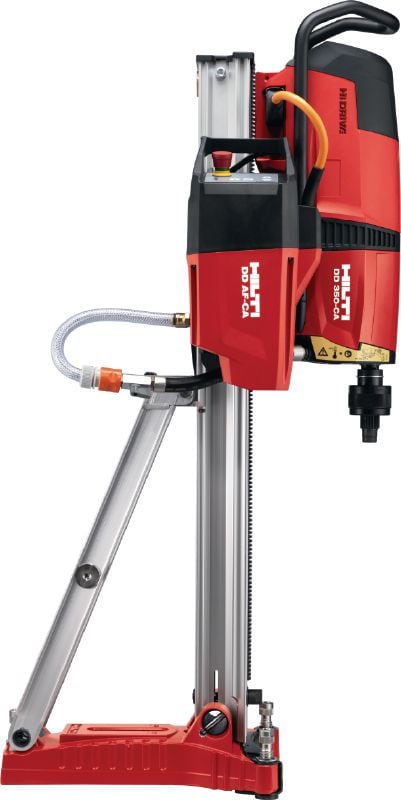

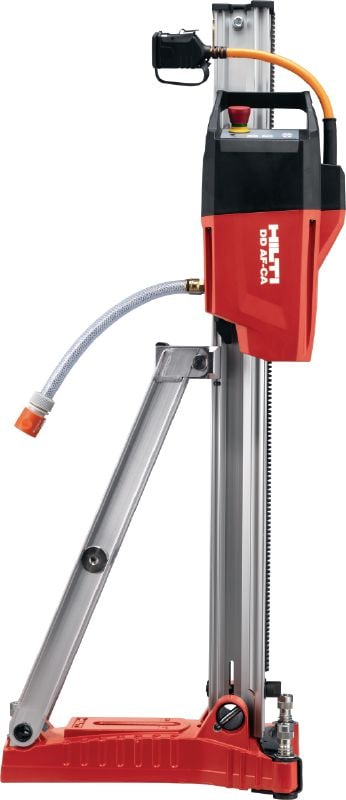

Autofeed unit to assist the drilling process with rig-based diamond coring systems – for use with the DD 350-CA and DD 500-CA
- For use with: DD 350-CA, DD 500-CA
- Weight: 4.5 kg
- Dimensions (LxWxH): 361 x 193 x 133 mm
Choose options
Rated input voltage
- 240 V
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
For use with
DD 350-CA, DD 500-CA
Weight
4.5 kg
Dimensions (LxWxH)
361 x 193 x 133 mm
IP protection class
IP 55 (EN 60529)
Rated input voltage
240 V
Rated input power
100 W
Features & Applications
Features
- Unmatched productivity with fully automated drilling process
- Automatic surface detection, water management, hole starting, iron boost and through-hole detection
- Intelligent algorithm for immediate reaction to any change in the characteristics of the base material
- Applies optimum power during the drilling process, resulting in extended equipment lifetime and faster drilling progress
- No exposure to vibration – for greater operating safety and higher working comfort
Applications
- Serial drilling of through-holes and penetrations
- Corner holes for sawing
- Large diameters and deep hole drilling
- Stitch coring for installing cable trays
- Drilling where access to the hole is difficult
