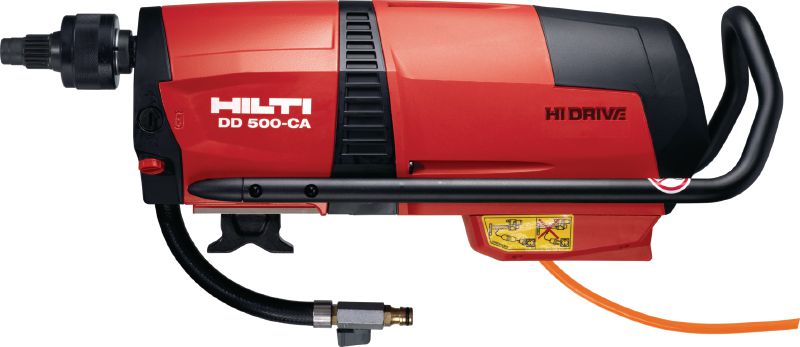

DD 500-CA Core drill

DD 500-CA, BL chuck, Diamond coring tool
BL chuck
BL chuck

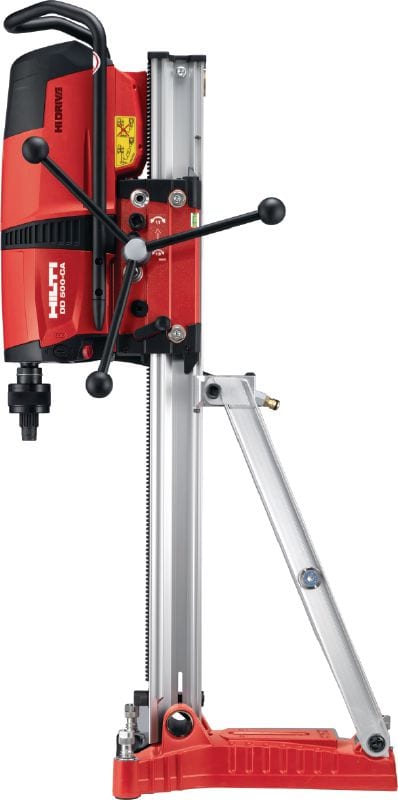

DD 500
DD 500

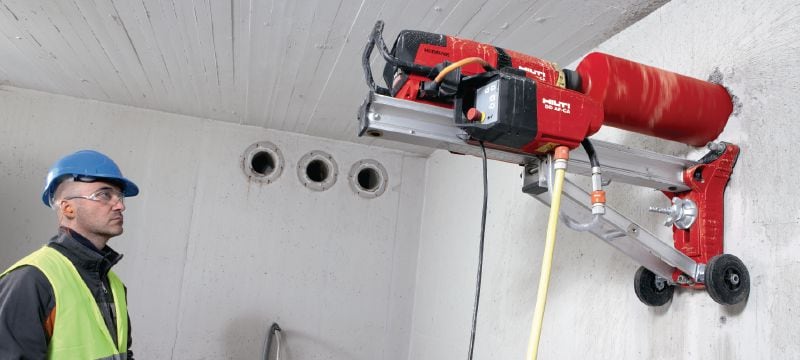

Coring with DD AF-CA

Three-phase heavy-duty diamond coring machine with high-frequency motor and optional auto-feed unit for rig-based concrete coring from 82-600 mm (3-7/32 - 23-5/8”) in diameter

  • Diameter range: 82 - 600 mm
  • Base material: Concrete, Reinforced concrete
  • Operation mode: Rig-based drilling system

Choose options

Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Diameter range
82 - 600 mm
Base material
Concrete, Reinforced concrete
Operation mode
Rig-based drilling system
Rated input power
6000 W
Number of gears
10
No load RPM
gear 4: 571 rpm; gear 5: 510 rpm; gear 6: 429 rpm; gear 7: 367 rpm; gear 8: 327 rpm; gear 9: 265 rpm
Weight according to EPTA-Procedure 01/2003 without battery
16.6 kg
Weight of complete system
37 kg
Dimensions (LxWxH)
608 x 192 x 216 mm
A-weighted emission sound pressure level
100 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)
4.5 m/s²
  1. According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

  • Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range
  • Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
  • Iron Boost: for a quick performance boost with increased torque when drilling through rebar
  • Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions
  • Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators

Applications

  • Drilling through-holes and penetrations
  • Manhole openings
  • Deep hole drilling
  • Stitch coring for installing cable trays
  • Large openings for water drainage pipes etc.

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every paid repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
