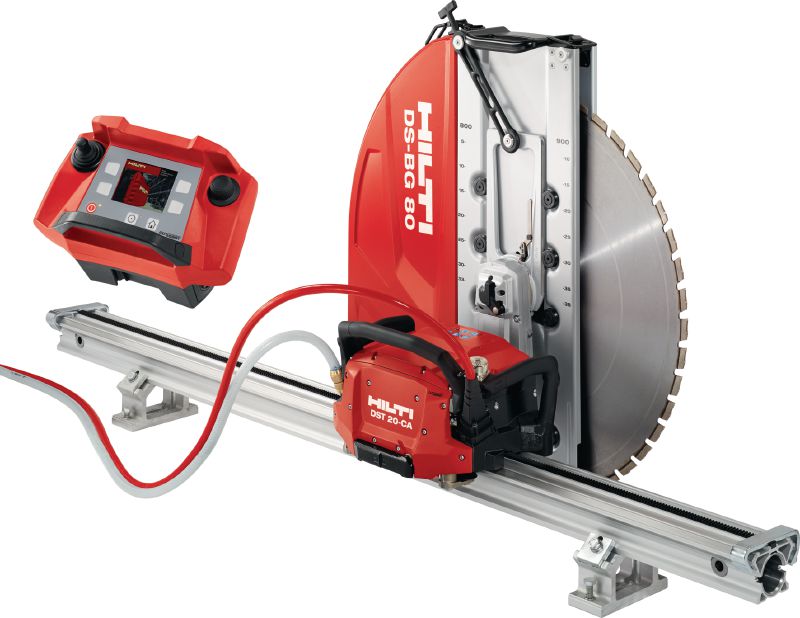

DST 20-CA Wall saw
Electric wall saw for tough cutting jobs with cut assistance and on-board control electronics (no e-box)
- Motor power: 20 kW
- Blade diameter - range: 600 - 1600 mm
- Min. generator power: 40 kVA
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 76,139.49
Technical Data
Motor power
20 kW
Blade diameter - range
600 - 1600 mm
Min. generator power
40 kVA
Power source
Electric
Max. cutting depth
730 mm
Drive weight
32 kg
A-weighted emission sound pressure level
98 dB (A) 1
Drive dimensions (WxLxH)
1100 x 690 x 1180 mm
Remote control
Wireless
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Hilti Cut Assist – equips tool for fully automated cutting. Starts when surface is detected, then continuously optimizes speed, gear and water flow, even when cutting through rebar. Cut Assist means much higher productivity and more time for other tasks.
- No external e-box necessary – control electronics integrated on-board make the saw more compact, as well as easier to handle, transport and quicker to set up
- Cutting depth is displayed in real time on the remote control

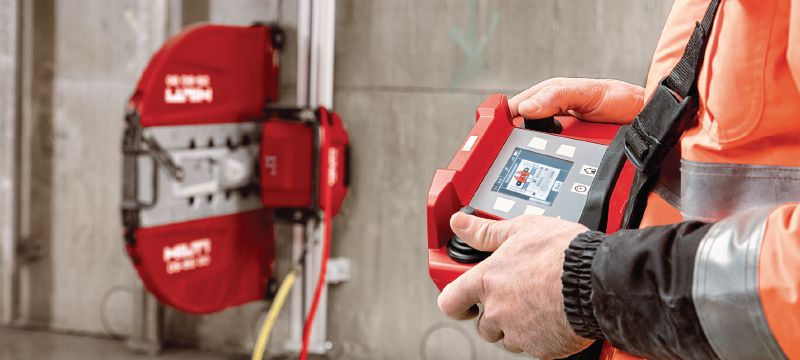

- Wireless remote control
- High reliability thanks to integrated control electronics and fewer electrical interfaces and cables
Applications
- Cutting and extending openings in concrete walls and floors
- Precise demolition of walls and floors with low vibration
- Cutting through heavily reinforced concrete, synthetic and natural stone, brick and block and other mineral-based materials
- Cutting in tight spaces and where access is difficult
- Facade and balcony renovation
For approval or certificate information, please see individual items.
