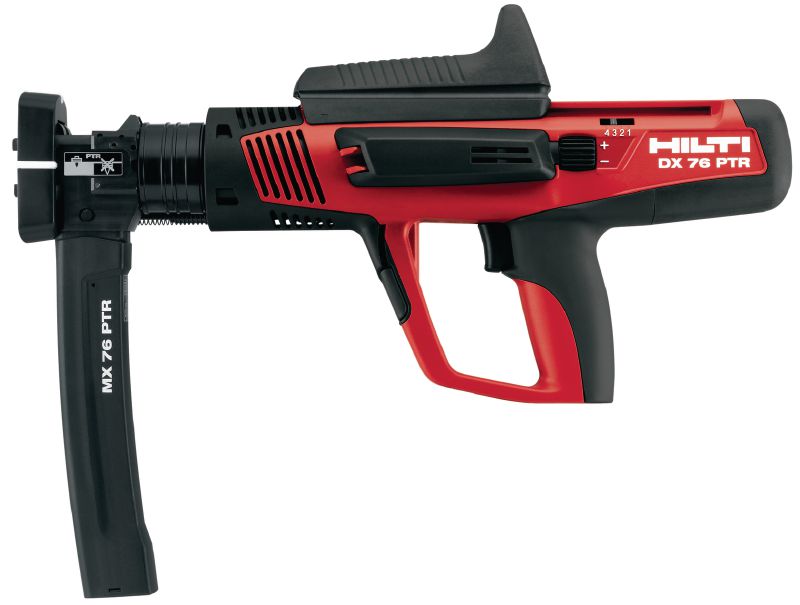

DX 76 PTR Powder-actuated tool






Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks
- Dimensions (LxWxH): 464 x 104 x 352 mm
- Weight: 4.37 kg
- Fastener Intake: Collated
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
BD 3,249.44
BD 3,249.44
/
1 each
Technical Data
Dimensions (LxWxH)
464 x 104 x 352 mm
Weight
4.37 kg
Fastener Intake
Collated
Fastener length range
19 - 21 mm
Automatic piston return
No
Bluetooth
No
Hilti Connect
No
Power (max.)
563 J
Power regulation
Yes
Piston type
X-76-P-ENP-PTR
Documents
pdf DX 76 Quick Start Guide [ 10.6 MB ]
Features & Applications
Features
- PTR also helps to deliver excellent fastening quality even on thin materials with a thickness of 3 mm or greater

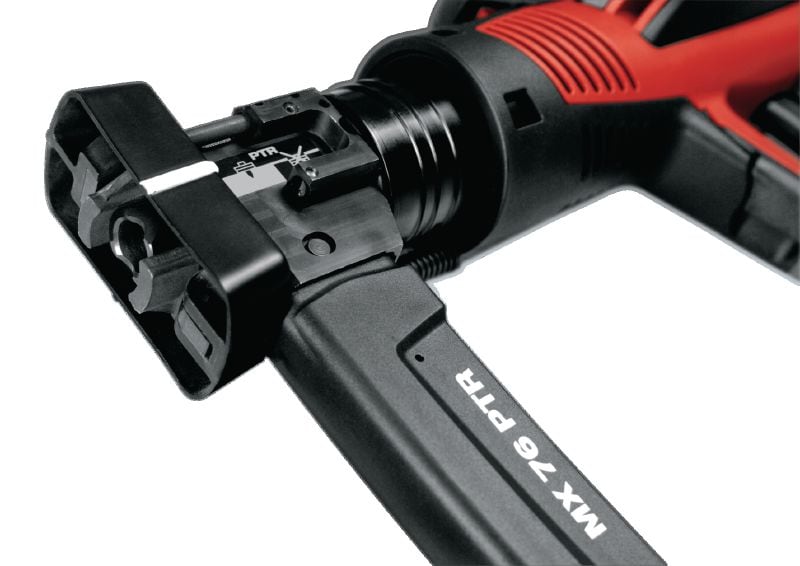

- Fastener magazine and rugged design for more reliable, efficient and quicker operation
- Drives fasteners at the average rate of 600 per hour
- Easy assembly and disassembly for on-the-spot maintenance – no tools required
- Advanced ergonomic design
Applications
- Fastening composite metal decks to steel structures with a minimum thickness of 3 mm (1/4") for composite decking

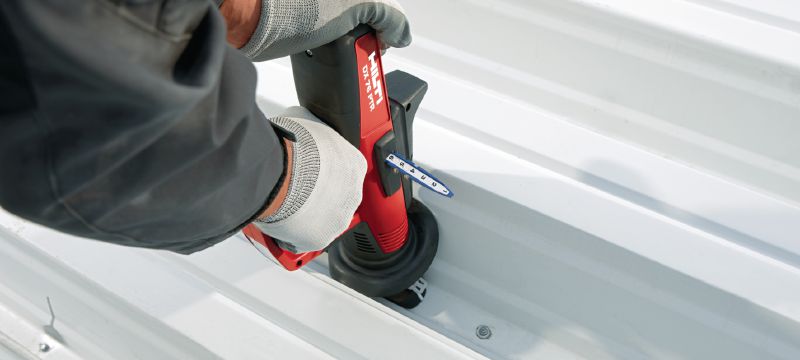

- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

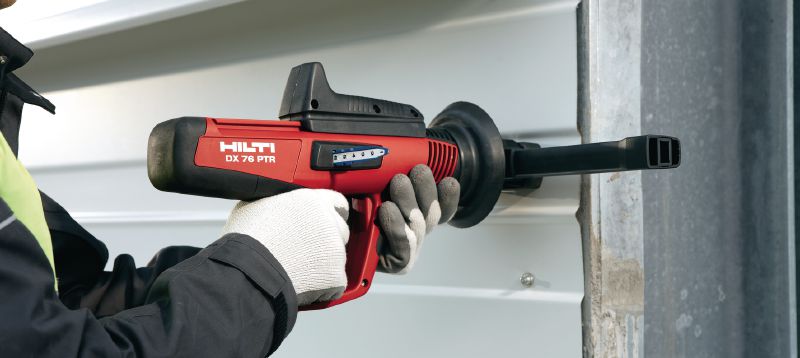

- Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
- Fastening grating elements to steel structures using grating accessories

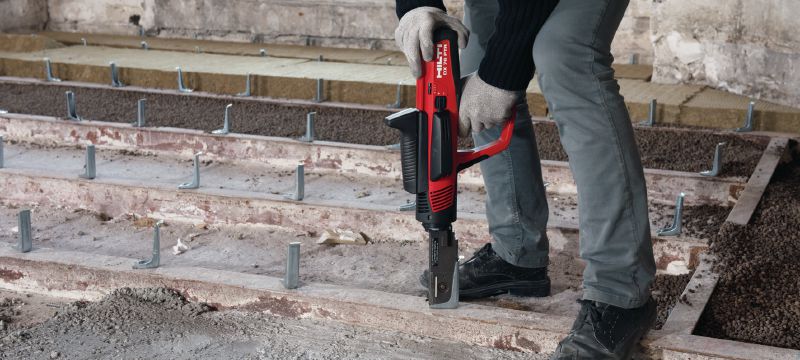

- Fastening shear connectors on steel structures with HVB accessories
For approval or certificate information, please see individual items.
