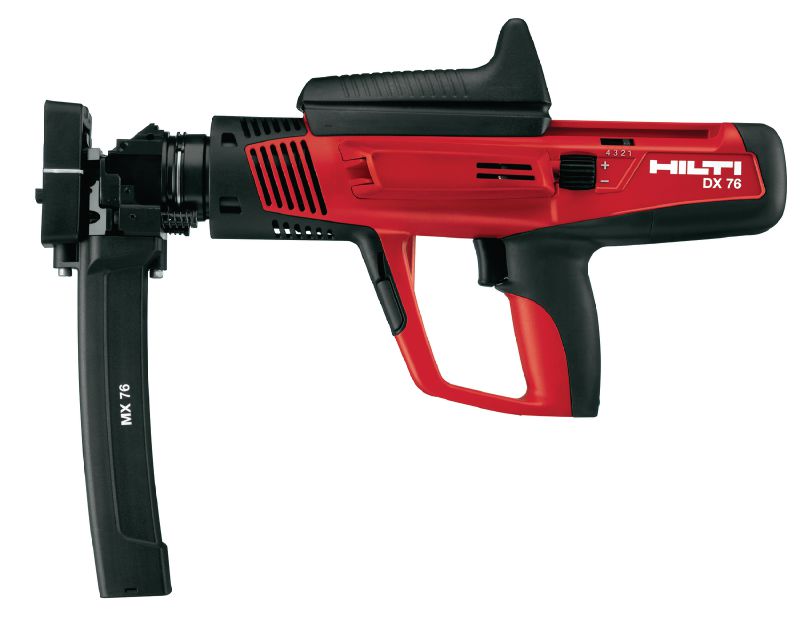

DX 76 Powder-actuated tool
Powder-actuated tool DX 76 MX #285793
Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks
- Dimensions (LxWxH): 450 x 101 x 352 mm
- Weight: 4.35 kg
- Fastener Intake: 10 nails
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
BD 2,790.90
BD 2,790.89 / 1 each
Technical Data
Dimensions (LxWxH)
450 x 101 x 352 mm
Weight
4.35 kg
Fastener Intake
10 nails
Fastener length range
19 - 21 mm
Cartridge type
6.8/18 M10
Automatic piston return
No
Bluetooth
No
Hilti Connect
No
Power (max.)
609 J
Power regulation
Yes
Piston type
X-76-P-ENP
Documents
Features & Applications
Features
- Outstanding ergonomic design – padded, non-slip cycling grip and excellent balance means less fatigue during use
- Built-in safety mechanisms – for safer and more reliable operation
- Easy to clean and maintain on jobsites
- Ruggedly built to withstand extreme use
- Adjustable power regulator – precise control for more reliable fastenings
Applications
- Fastening composite metal decks to steel structures with a minimum thickness of 6 mm (1/4") for composite decking

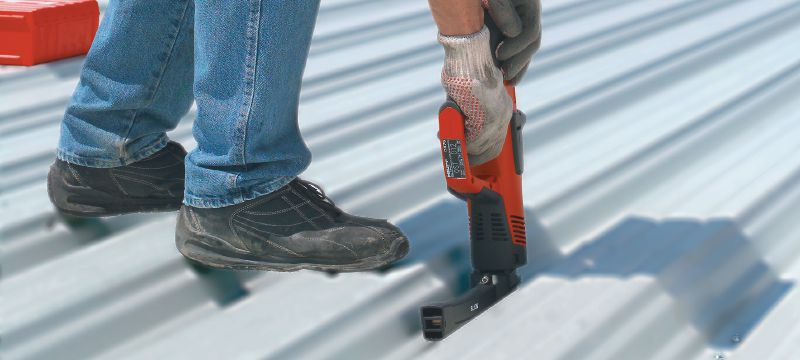

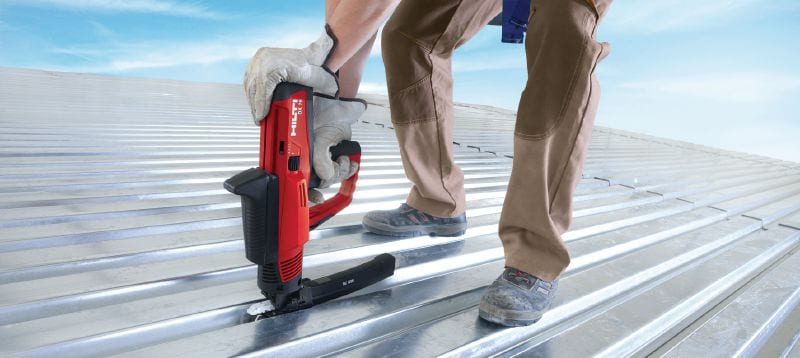

- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

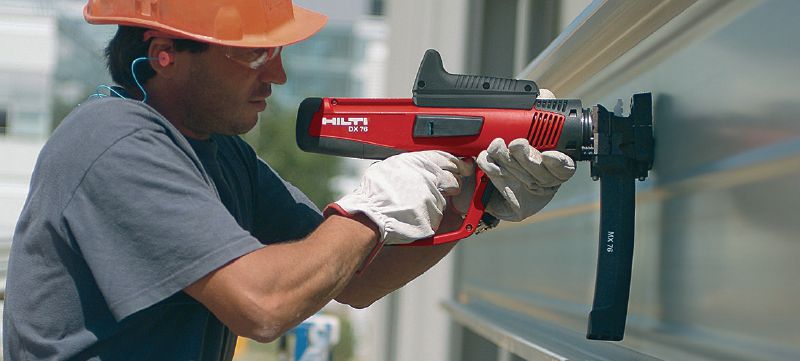

- Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
- Fastening grating elements to steel structures using grating accessories
- Fastening shear connectors on steel structures with HVB accessories
Services
Hilti Tool Service
- 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- After no-cost period repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
- After no-cost period repair costs are capped for as long as we service the tool
- After every paid repair again 3-month no-repair-cost period
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
