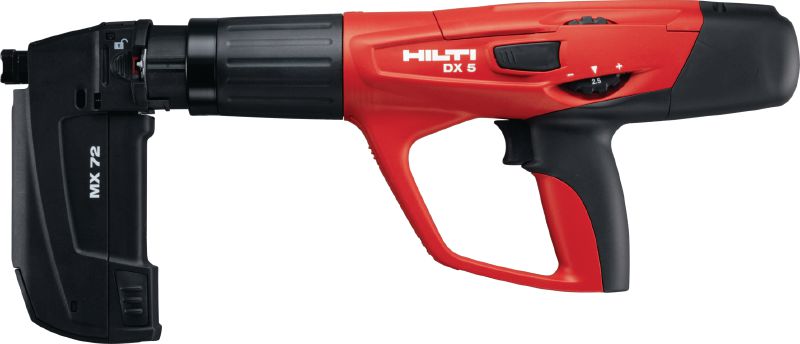

DX 5-MX Powder-actuated tool

DX 5 MX, service indicator, display, bluetooth
DX 5 service indicator with maintenance symbol
Powder actuated tool DX 5 MX, Building & Construction, kickerboard, wood to concrete

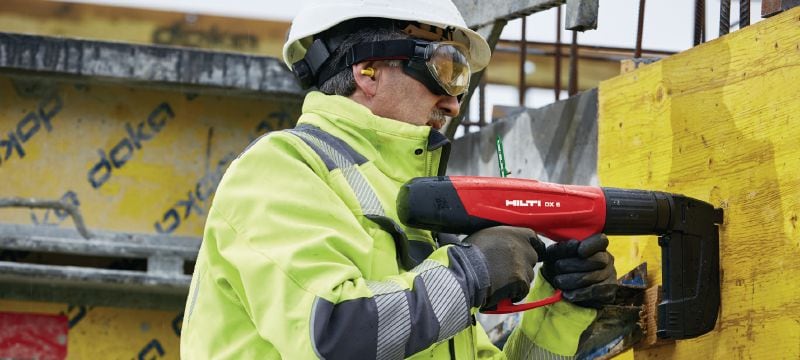

Fastening wood to concrete with MX magazine
DX_5_MX,_deflection_head,_track_fastening_to_ceiling,_interior_finishing,_X-U_concrete_nail
Fastening injection hose with the X-FB

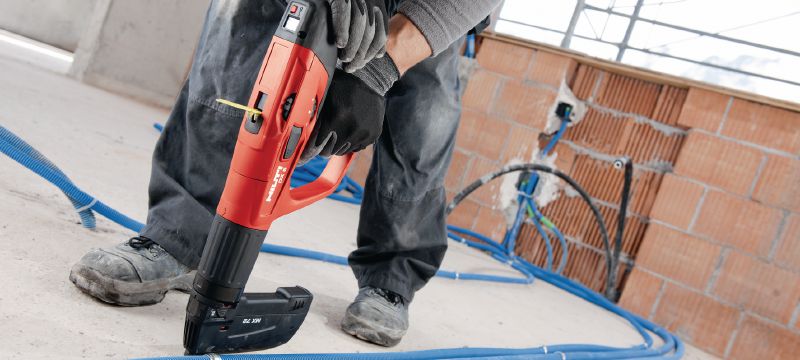

Powder_actuated_tool_DX_5_MX,_Electrical,_Conduits_to_floor

Digitally enabled, fully automatic, high-productivity and versatile powder actuated tool for fastening collated nails

  • Dimensions (LxWxH): 486 x 72 x 180 mm
  • Weight: 3.64 kg
  • Fastener Intake: Collated

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From BD 814.43

Technical Data

Dimensions (LxWxH)
486 x 72 x 180 mm
Weight
3.64 kg
Fastener Intake
Collated
Fastener length range
14 - 72 mm
Cartridge type
.27 caliber short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
Yes
Hilti Connect
Yes
Power (max.)
325 J
Power regulation
Yes
Piston type
X-6-5-P8

Documents

pdf Service Indicator Instructions [ 996.7 KB ]

Features & Applications

Features

  • Smart tool that tells you when cleaning and maintenance are required
  • Built-in connectivity with the Hilti Connect app – putting key tool data, how-to videos and technical support at the operator's fingertips
  • High productivity: Fully automatic piston return, cartridge transport and 10 nail collation magazine
  • With the magazine 10 fasteners can be driven in quick succession without reloading
  • Superb ergonomics and design with reduced recoil

Applications

  • A wide variety of applications using collated fasteners
  • Fastening wood and metal sheet to concrete, sand-lime block masonry or steel
  • Fastening 2x4s to concrete
  • Attaching drainage foils and membranes to concrete or CMU block
  • Fastening perimeter wall, deflection or slip clips to concrete and steel

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every paid repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
