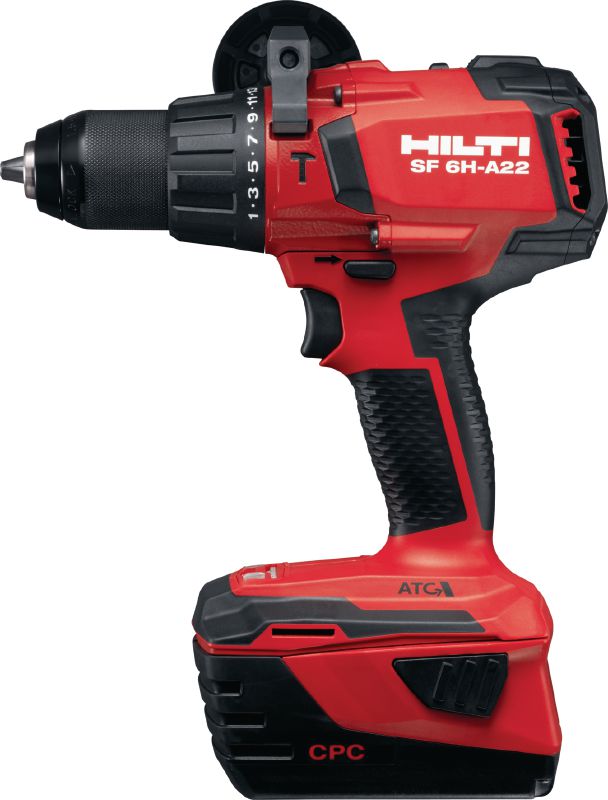

SF 6H-A22 Cordless hammer drill driver

Configurator
Technical Data
Features & Applications
Related Products

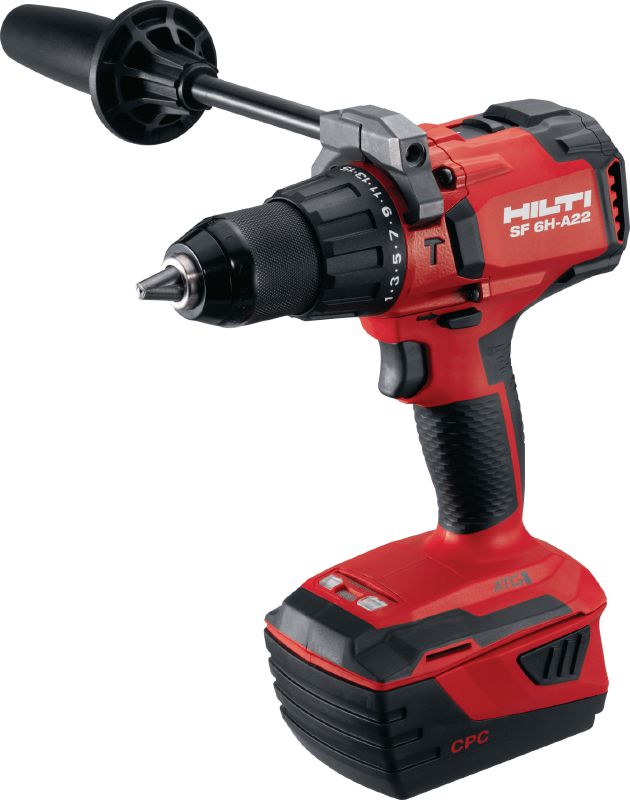

SF 6H-A22 2nd Generation cordless hammer drill driver with 5.2Ah battery
SF 6H-A22 2nd Generation cordless hammer drill driver with 5.2Ah battery
SF 6H-A22 G02 + 5.2 + holesaw, r9370482
SF 6H-A22 G02 + 4.0 + spax screw, r9370482
SF 6H-A22 G02 + 5.2 + spax screw, r9370482
SF 6H-A22 G02 + 5.2 + stepper bit, r9370482
SF 6H-A22 G02 + 4.0 + stepper bit, r9370482
SF 6H-A22 G02 + 5.2 + spade bit, r9370482
SF 6H-A22 G02 + 5.2 + auger bit, r9370482
SF 6H-A22 G02 + 4.0 + auger bit, r9370482
SF 6H-A22 G02 + 4.0 + masonry bit, r9370482
SF 6H-A22 G02 + 5.2 + masonry bit, r9370482
SF 6H-A22 G02 + 4.0 + self feed bit, r9370482
SF 6H-A22 G02 + 5.2 + HSS drill bit, r9370482
SF 6H-A22 G02 + 4.0 + HSS drill bit, r9370482

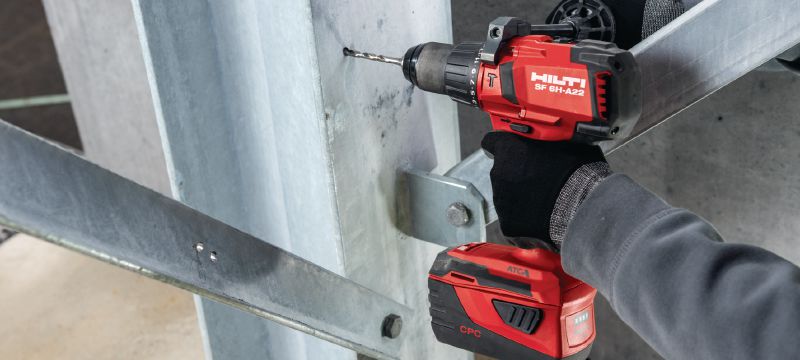

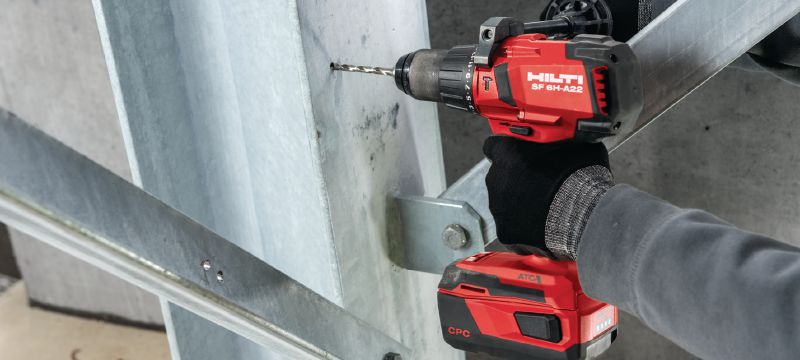

Power-class cordless 22V hammer drill driver with Active Torque Control and electronic clutch for universal use on wood, metal, masonry and other materials

  • Maximum torque (Soft / Hard Joint): 65 Nm (soft joint), 80 Nm (hard joint)
  • No load RPM: gear 1: 490 rpm; gear 2: 2000 rpm
  • Chuck clamping range: 2 - 13 mm

Customers also searched for Drill, Hammer drill or Drill /driver.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From BD 345.87

Technical Data

Maximum torque (Soft / Hard Joint)
65 Nm (soft joint), 80 Nm (hard joint)
No load RPM
gear 1: 490 rpm; gear 2: 2000 rpm
Chuck clamping range
2 - 13 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
209 x 87 x 212 mm
Tool body weight
1.686 kg
A-weighted emission sound pressure level
91 dB (A) 1
Rated voltage
21.6 V
  1. According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

  • Outstanding performance-to-size ratio
  • Hilti’s exclusive Active Torque Control provides additional protection from tool over-rotation when bits get stuck
  • All metal gearbox, rubber bumpers and glass fiber reinforced housing ensure maximum robustness
  • Brushless motor provides high torque and application speeds while efficiently using battery power
  • Dual LED work lights in the tool foot illuminate your work area with minimal shadows

Applications

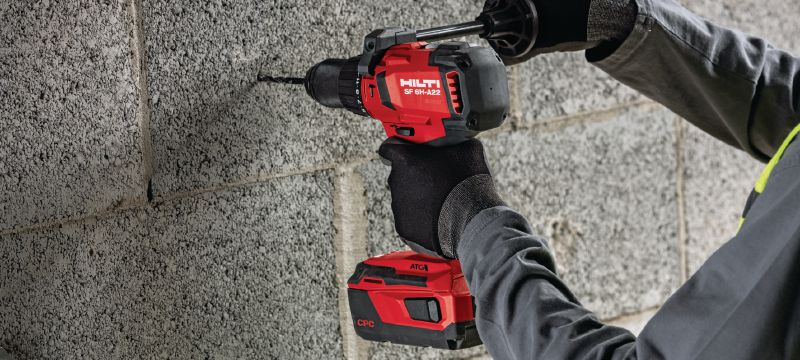

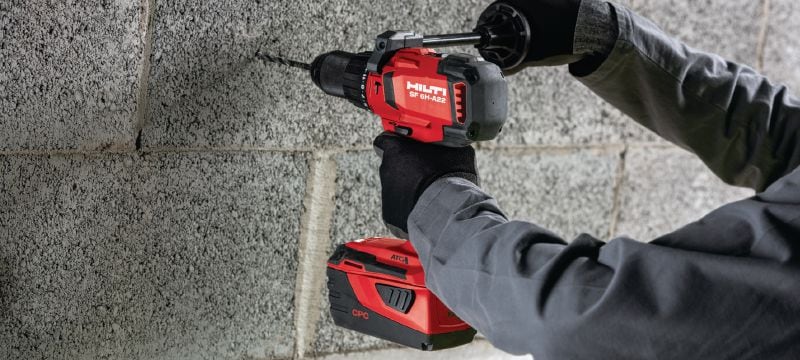

  • Hammer drilling in diameters up to 1/2" in brick, masonry and aerated concrete
  • Hammer drilling in diameters up to 14 mm in brick, masonry, sand-lime block and aerated concrete

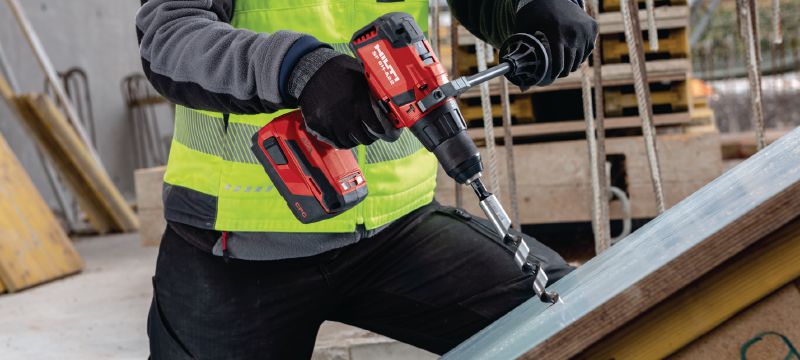

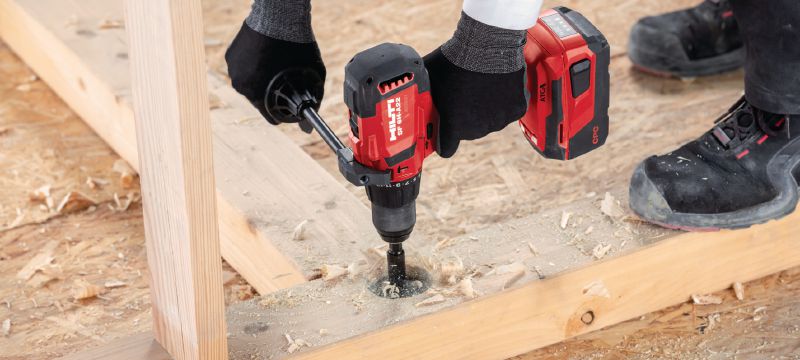

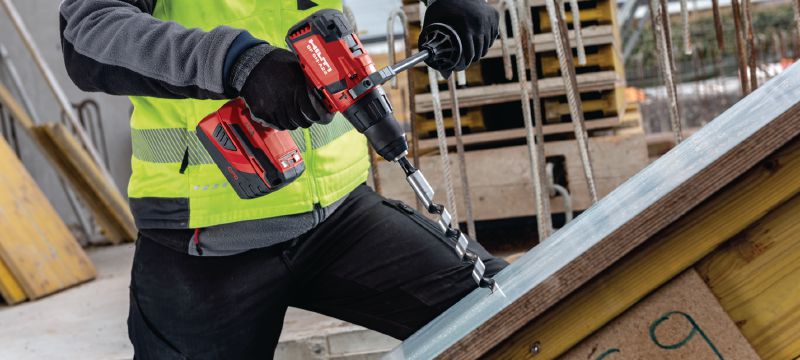

  • Drilling with auger and spade bits up to 32 mm diameter in wood

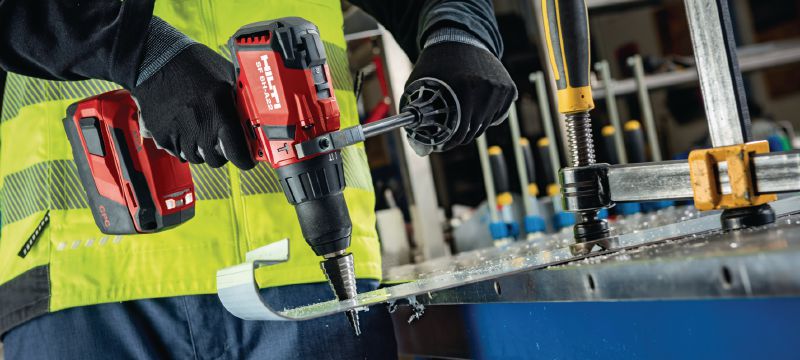

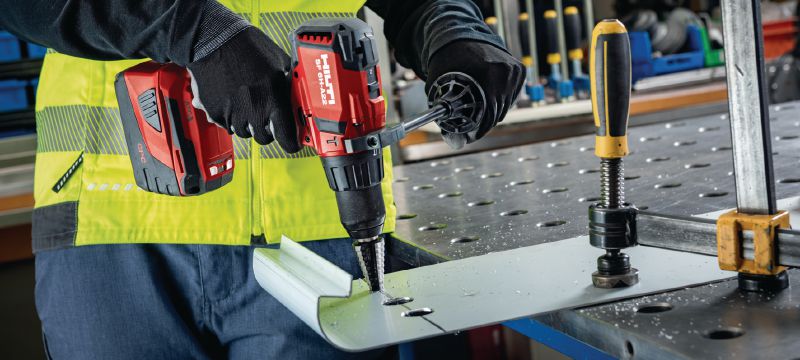

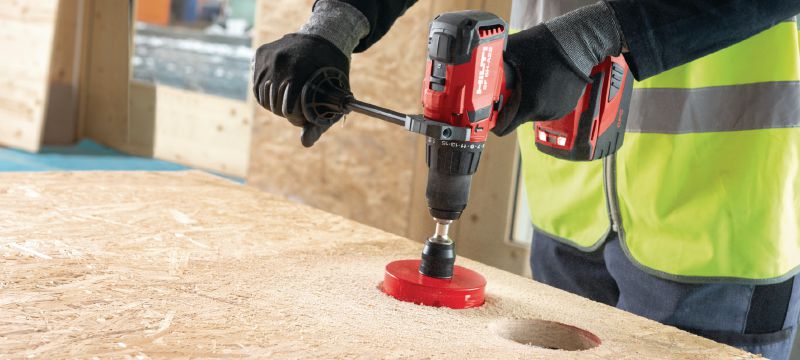

  • Cutting recesses and through-holes with hole saws up to 5" diameter
  • Cutting recesses and through-holes with hole saws up to 125 mm diameter

For approval or certificate information, please see individual items.
