Nuron

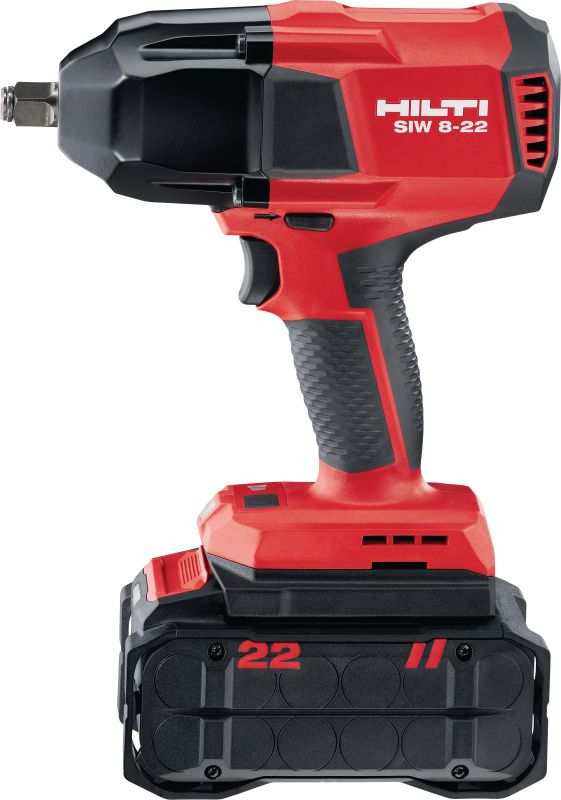

SIW 8-22 ½” Cordless impact wrench

Cordl. imp. wrench SIW 8-22 1/2" box #2251628

Configurator
Technical Data
Features & Applications
Related Products
Services
SIW 8-22 cordless impact wrench
SIW 8-22 tool body, SIW 8-22 for HUS anchoring application
SIW 8-22 tool body, SIW 8-22 for steel and metal application, bolting, M24
SIW 8-22 tool body, SIW 8-22 for steel and metal application, bolting, M24
SIW 8-22 tool body, SIW 8-22 for wood application, lag bolts

Ultimate-class, high-torque cordless impact wrench with 1/2" friction ring anvil for structural bolting and anchoring (Nuron battery platform)

  • Anvil type: 1/2" friction ring
  • Maximum torque: 600 Nm (1); 1000 Nm (2)
  • Nut busting torque: 1650 Nm

Customers also searched for cordless impact wrench, impact wrench, impact wrenches, Nuron battery platform or Nuron impact wrench.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 658.89
BD 658.89
/
1 each

Technical Data

Anvil type
1/2" friction ring
Maximum torque
600 Nm (1); 1000 Nm (2) 1
Nut busting torque
1650 Nm
Full hammering frequency
2.950 impacts/minute
Number of gears
2
No load RPM
gear 1: 1250 rpm; gear 2: 1500 rpm
Dimensions (LxWxH)
205 x 80 x 223 mm
Tool body weight
2.4 kg
A-weighted emission sound pressure level
101 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

  • Uncompromised cordless power – heavy-duty ½” cordless impact wrench offers higher torque and greater productivity, capable of structural bolting in anchors up to M24
  • Durable build – brushless motor and friction ring anvil contribute to the extreme longevity of our cordless impact wrenches
  • Faster anchor setting with more control – two speed settings and improved LED light so you can set HUS concrete anchors faster, and maintain better control when working with smaller bolts
  • Exceptional ergonomics – slimmer, 45 mm shorter and 0.5 kg lighter than the SIW 9-A22, helping to make your work more comfortable when bolting and anchoring all day
  • On the Nuron battery platform – cordless impact wrenches without compromise thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

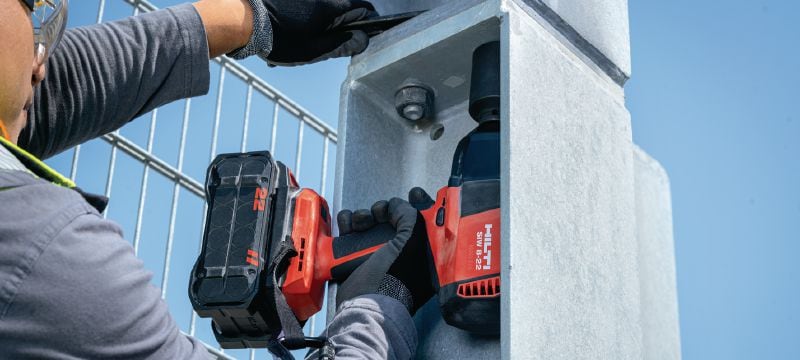

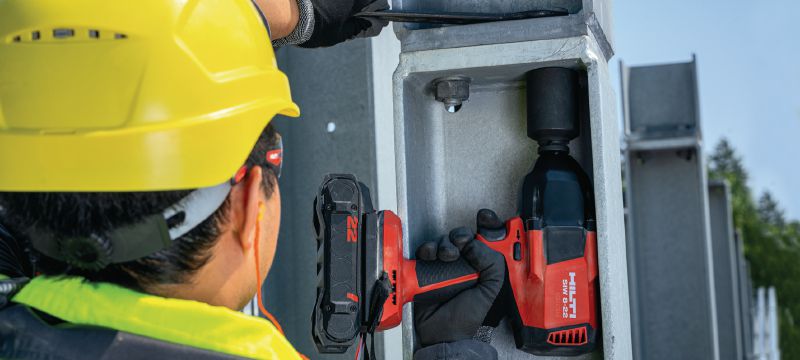

  • Bolting steel – such as for primary and secondary steel structures, handrails, racking and machinery (M12-M24 diameter)

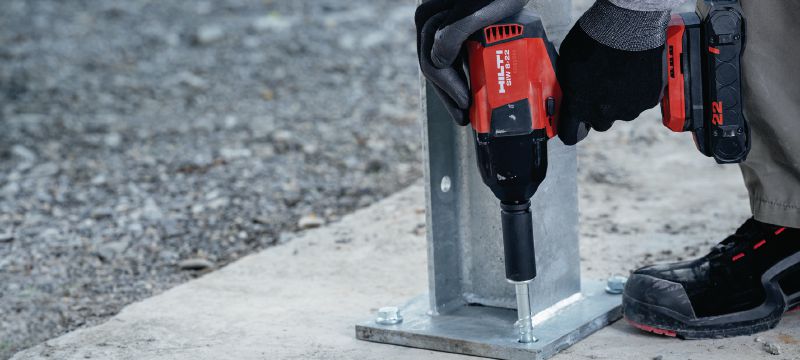

  • Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (10-14 mm diameter)

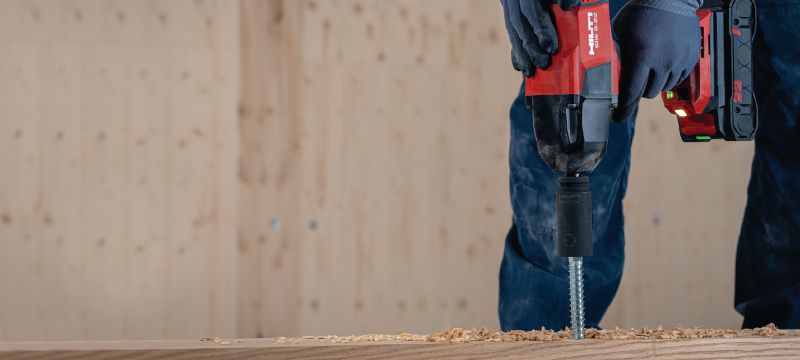

  • Lag bolting in wood – such as for primary and secondary wood structures, wooden roofs or temporary structures (12-20 mm diameter)
  • Bolting steel – structural steel connections, pipe flanges, equipment, A325 bolts (1/2” to 15/16” diameter)
  • Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (1/2” to 3/4” diameter)

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
