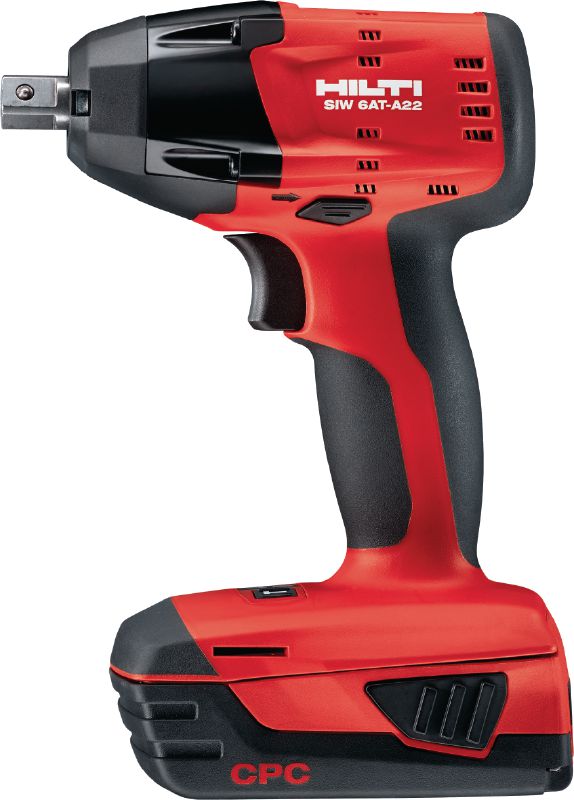

SIW 6AT-A22 Cordless impact wrench
Power-class 22V light-torque impact wrench with 1/2" detent anvil for anchoring and bolting
- Anvil type: 1/2" detent pin
- Maximum torque: 90 Nm (1); 135 Nm (2); 213 Nm (3)
- Nut busting torque: 338 Nm
Customers also searched for impact wrench, 1/2 cordless impact wrench, battery impact wrench, battery powered impact wrench or cordless impact wrench.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 283.33
Technical Data
Anvil type
1/2" detent pin
Maximum torque
90 Nm (1); 135 Nm (2); 213 Nm (3) 1
Nut busting torque
338 Nm
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
154 x 94 x 228 mm
Tool body weight
1.04 kg
A-weighted emission sound pressure level
94 dB (A) 2
Rated voltage
21.6 V
- Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- High-efficiency brushless motor means the tool lasts longer and gets more work done per charge
- Compact design for use wherever space is limited
- Three gears and electronic speed control for easy switching between different driving speeds and torque
- Four bright LEDs around the chuck provide direct illumination of the work surface
- Compatible with the Hilti SI-AT-A22 Adaptive Torque module for controlled fastenings

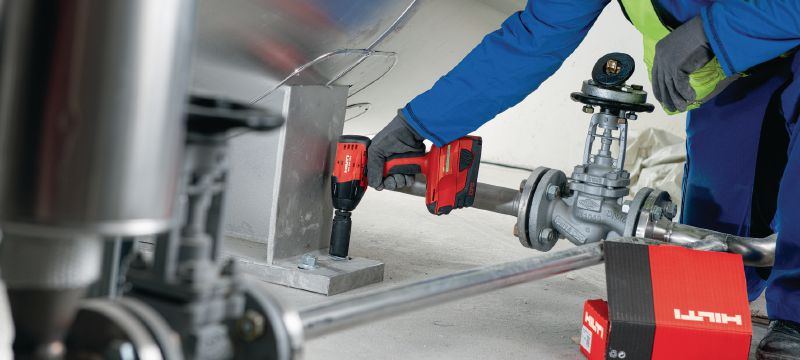

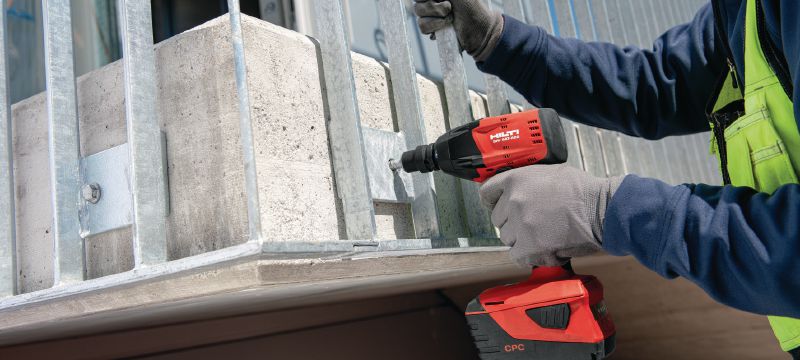

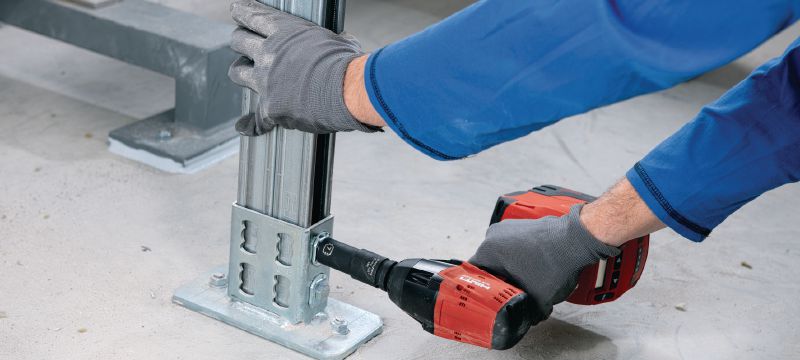

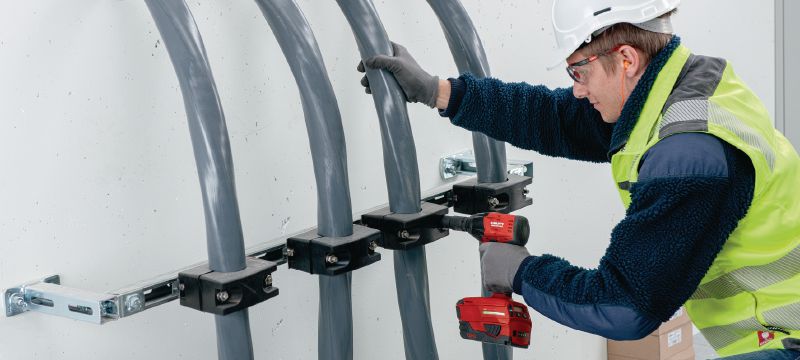

Applications
- Driving 6 mm and 8 mm HUS3 screw anchors in concrete
- Driving screws in HRD frame anchors 8 mm and 10 mm in diameter in masonry and concrete
- Driving lag bolts up to 8 mm in diameter in wood
- Driving lag bolts up to 1/2" in diameter
- Tightening and releasing nuts and bolts in sizes M8 to M16
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- After no-cost period repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
- After no-cost period repair costs are capped for as long as we service the tool
- After every paid repair again 3-month no-repair-cost period
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
