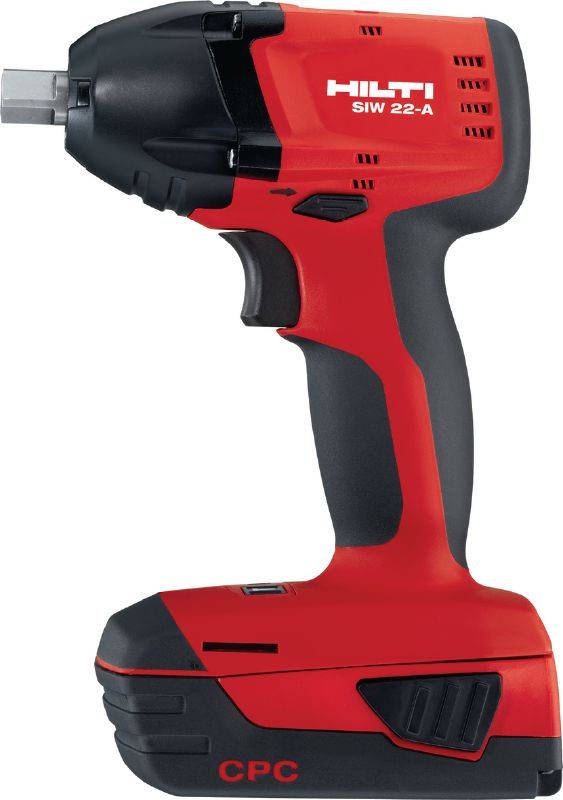

SIW 22-A Cordless impact wrench

Configurator
Technical Data
Features & Applications
Related Products
Services
SIW 22-A_prim_L047530_V3.tif
SIW 22-A_app1_L049643.tif
SIW 22-A_app3_L047666.tif
SIW 22-A_app2_L049636.tif

Power-class 22V light-torque impact wrench with 1/2" detent pin anvil for anchoring and bolting

  • Anvil type: 1/2" detent pin
  • Maximum torque: 90 Nm (1); 135 Nm (2); 200 Nm (3)
  • Full hammering frequency: 3500 impacts/minute

Customers also searched for 22 v impact wrench, impact wrench, 22v cordless impact wrench or cordless wrench.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Anvil type
1/2" detent pin
Maximum torque
90 Nm (1); 135 Nm (2); 200 Nm (3) 1
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
154 x 94 x 228 mm
Tool body weight
1 kg
A-weighted emission sound pressure level
86 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

  • ½" square drive with heavy-duty detent pin retention for safety and quick socket changes
  • High-efficiency brushless motor means the tool lasts longer and gets more work done per charge
  • Compact design for use wherever space is limited
  • Three gears and electronic speed control for easy switching between different driving speeds and torque
  • Four bright LEDs around the chuck provide direct illumination of the work surface

Applications

  • Driving 6 mm and 8 mm HUS3 screw anchors in concrete
  • Driving screws in HRD frame anchors 8 mm to 10 mm in diameter in masonry and concrete

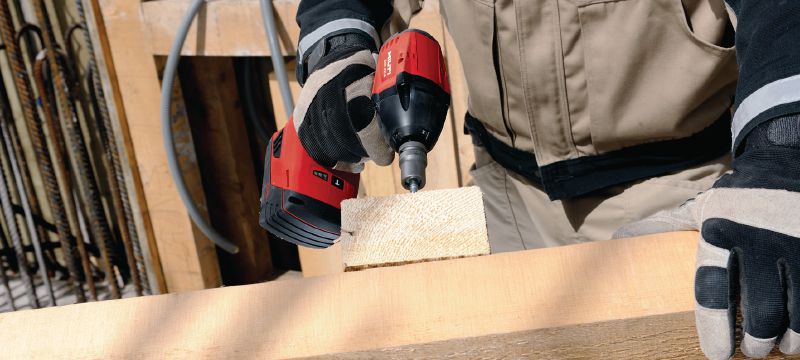

  • Driving lag bolts up to 8 mm in diameter in wood
  • Tightening and releasing high-strength bolts up to 3/8" in diameter
  • Tightening and releasing nuts and bolts in the sizes M6 to M16

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every paid repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
