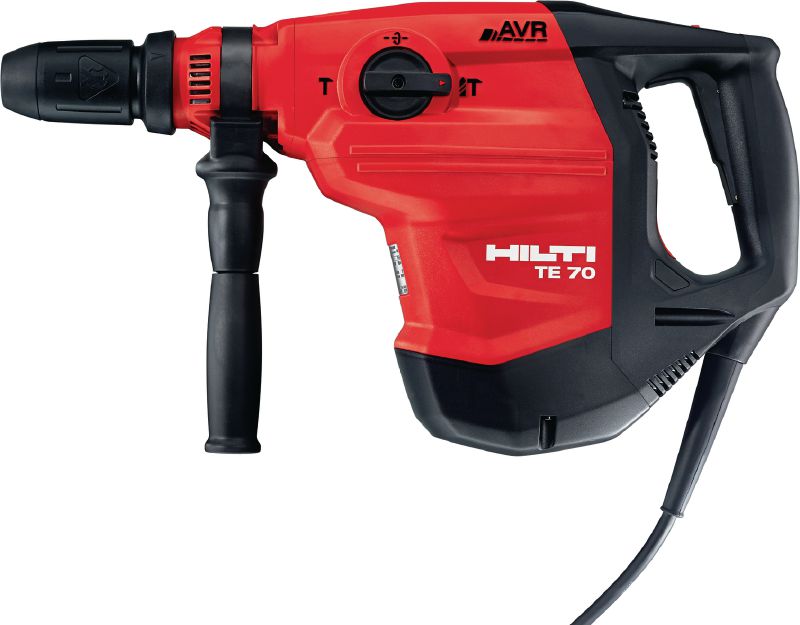

TE 70-AVR Rotary hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L059823.tif
L062094.tiff
TE_70-AVR_(G03),_new_TE-YX,_Combihammer
L062175.tiff
L061150.tiff

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty concrete drilling and chiseling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 8.3 kg
  • Single impact energy: 11.5 J
  • Hammer drilling diameter range: 12 - 150 mm

Customers also searched for concrete drill , rotary hammer , hammer drill , rotary hammer drill or SDS MAX Hammer Drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From BD 654.51

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
8.3 kg
Single impact energy
11.5 J
Hammer drilling diameter range
12 - 150 mm
Optimum Hammer drilling range
20 - 45 mm
Hammer drilling RPM
360 rpm
Full hammering frequency
2760 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiseling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.8 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
9.0 m/s² 2
Rated input power
1800 W
Dimensions (LxWxH)
540 x 125 x 305 mm
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
105 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (AR) [ 926.7 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.1 KB ]

Features & Applications

Features

  • Highest productivity for a wide range of drilling and chiseling applications
  • Low contact pressure for high user comfort
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Ruggedly built for a long lifetime

Applications

  • Hammer drilling in concrete, masonry and natural stone using bits in the 12-150 mm diameter range
  • Drilling holes for heavy-duty anchors from 20-40 mm in diameter
  • Breaching and demolition using pointed and flat chisels
  • Drilling with high torque in wood and steel
  • Hammer drilling in concrete, masonry and natural stone using bits in the 1/2" - 6" diameter range

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every paid repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
