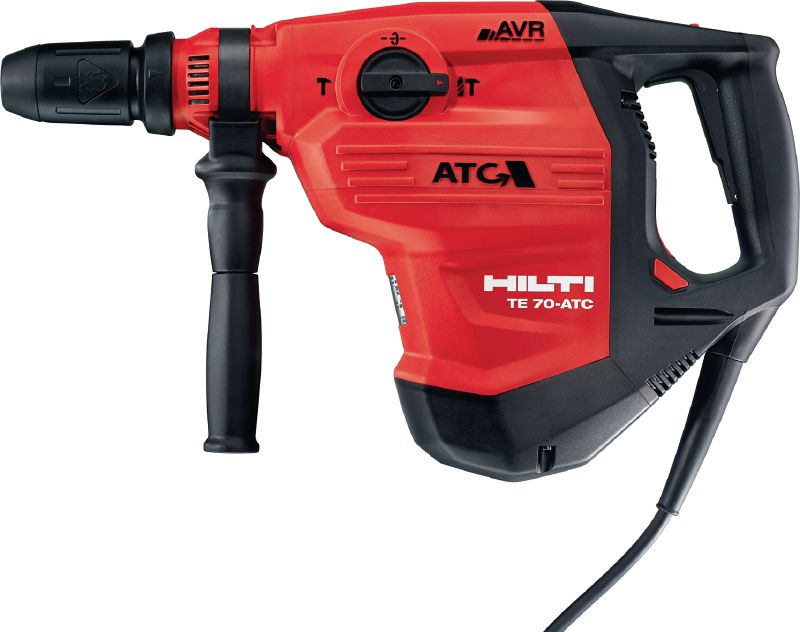

TE 70-ATC/AVR Rotary hammer
Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty concrete drilling and chiseling, with Active Torque Control (ATC) and Active Vibration Reduction (AVR)
- Weight according to EPTA-Procedure 01/2003 without battery: 9.5 kg
- Weight class: 7 kg
- Single impact energy: 11.5 J
Customers also searched for concrete drill , rotary hammer , hammer drill , rotary hammer drill or rock drill.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 1,466.60
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
9.5 kg
Weight class
7 kg
Single impact energy
11.5 J
Hammer drilling diameter range
12 - 55 mm
Optimum Hammer drilling range
20 - 40 mm
Hammer drilling RPM
360 rpm
Full hammering frequency
2760 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
10 m/s² 2
Rated input power
1800 W
Dimensions (LxWxH)
540 x 125 x 324 mm
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
102 dB (A) 4
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Highest productivity for a wide range of drilling and chiseling applications
- Low contact pressure for high user comfort
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- Optional DRS-Y dust removal system collects up to 95% of dust
- Ruggedly built for a long lifetime
Applications

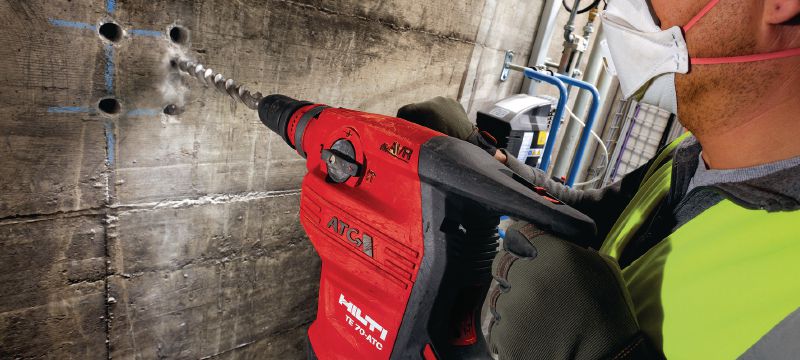

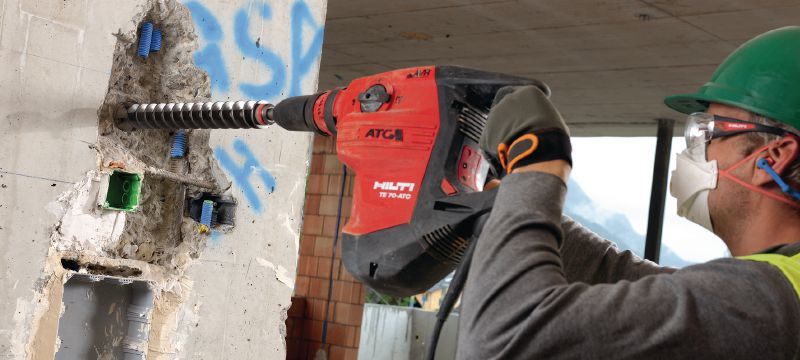

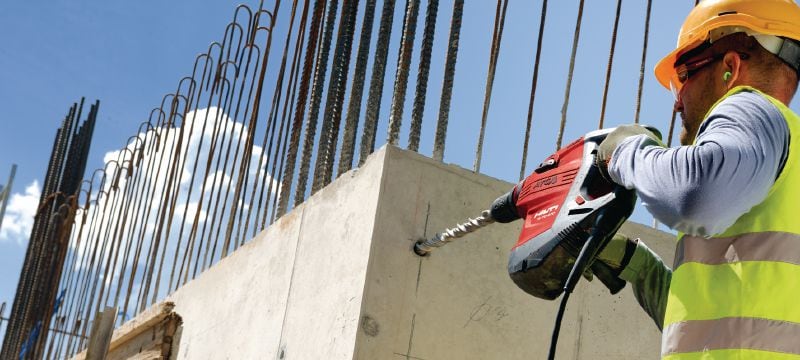

- Hammer drilling in concrete, masonry and natural stone with drill bits 12-150 mm in diameter
- Drilling holes for heavy-duty anchors from 20-40 mm in diameter

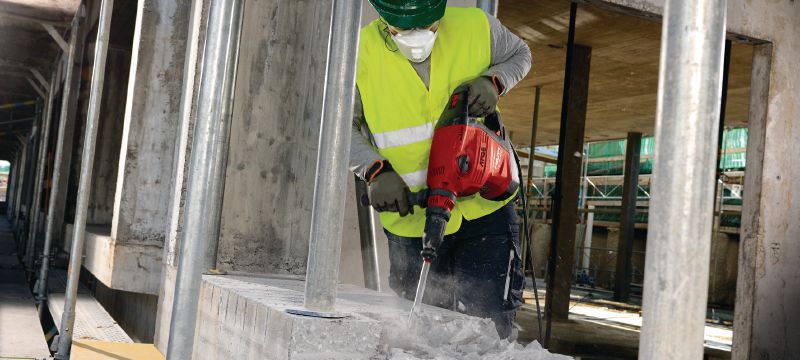

- Breaching and demolition with pointed and flat chisels
- Drilling with high torque in wood and steel
- Hammer drilling in concrete, masonry and natural stone with drill bits 1/2" - 6" in diameter
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- After no-cost period repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
- After no-cost period repair costs are capped for as long as we service the tool
- After every paid repair again 3-month no-repair-cost period
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
