Nuron

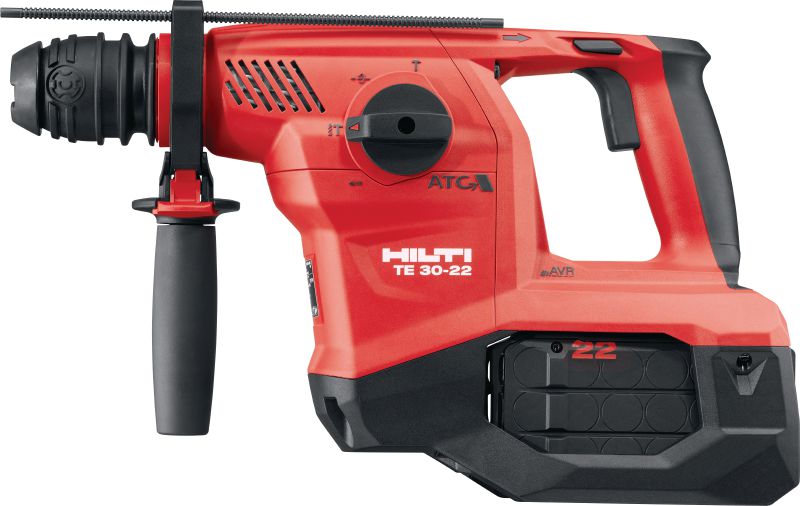

TE 30-22 cordless rotary hammer

Cordl. combihammer TE 30-22 case #2253114

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
TE 30-22 SDS-Plus cordless rotary hammer with TE-YX drill bit for reinforced concrete drilling

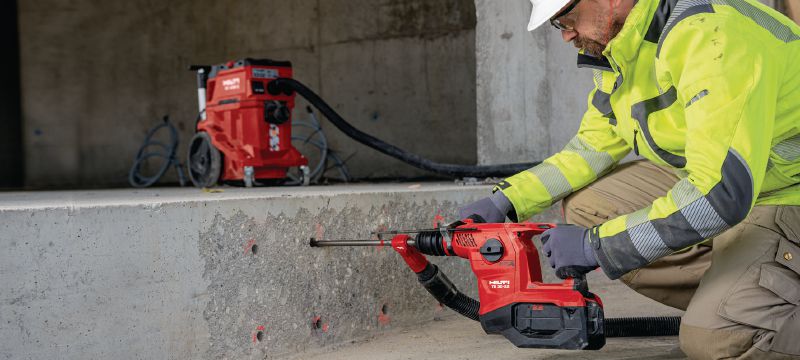

TE 30-22 SDS-Plus rebar hole drilling with TE-CD Hollow drill bit, hard hat HNA

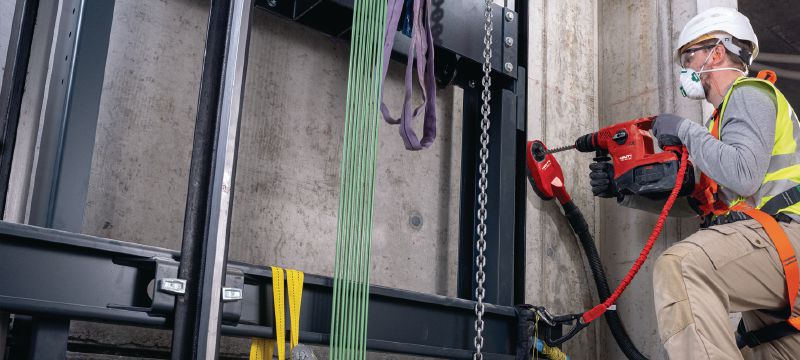

TE 30-22 SDS-Plus anchor hole drilling in elevator shaft with TE-CX, Tool Tether, DRS-D, and EU hardhat.

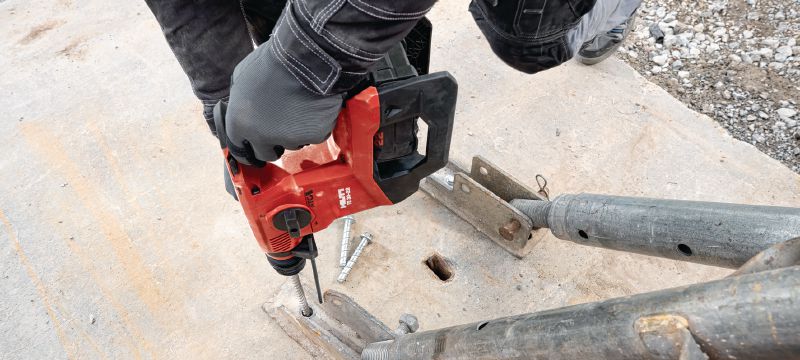

TE 30-22 formwork application images

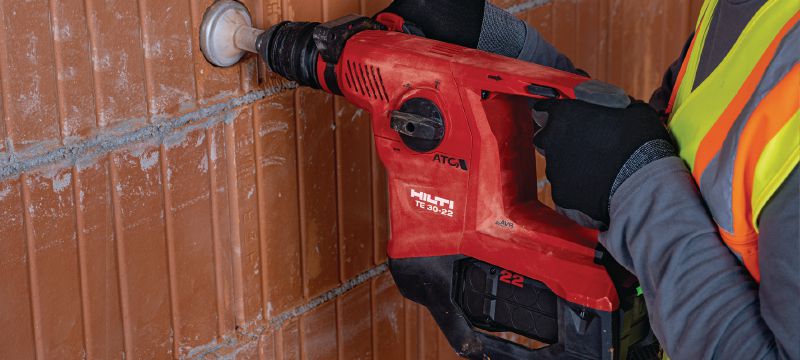

Opening a socket on red brick masonry with our cordless SDS-Plus rotary hammer TE 30-22

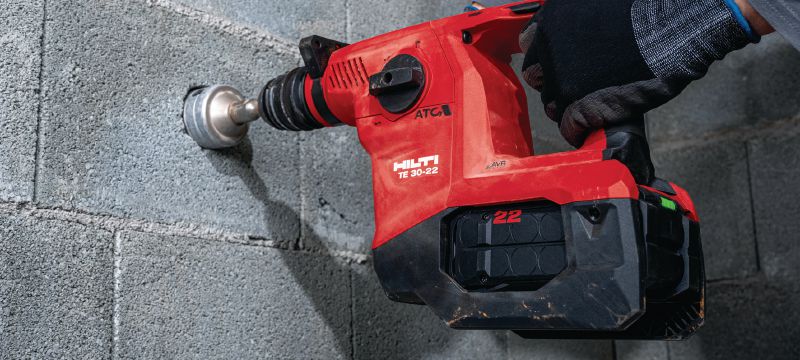

Opening a socket on grey brick masonry with our cordless SDS-Plus rotary hammer TE 30-22

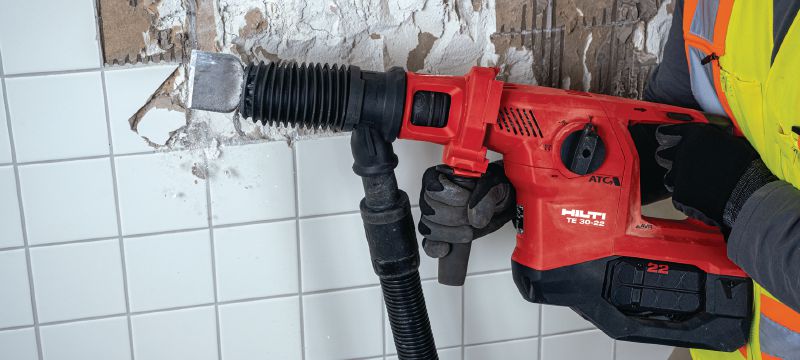

Removing tiles with cordless SDS-Plus rotary hammer TE 30-22

Powerful cordless SDS Plus (TE-C) rotary hammer with Active Vibration Reduction and Active Torque Control for concrete drilling and chiseling (Nuron battery platform)

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.9 kg
  • Optimum Hammer drilling range: 10 - 25 mm
  • Single impact energy: 3.8 J

Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Plus rotary hammer or Nuron battery platform.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 1,059.07
BD 1,059.07
/
1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.9 kg
Optimum Hammer drilling range
10 - 25 mm
Single impact energy
3.8 J
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
777 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch
Triaxial vibration value for hammer drilling into concrete (ah,HD)
11.1 m/s² 1
Triaxial vibration for chiseling into concrete
8.5 m/s² 2
A-weighted emission sound power level
102 dB (A) 3
A-weighted emission sound pressure level
91 dB (A) 4
Dust removal system available
TE DRS-D, TE DRS-C
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (AR) [ 926.7 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.1 KB ]

Features & Applications

Features

  • Our most powerful SDS Plus cordless rotary hammer drill ever, still weighing just 5.1 kg (including B 22-170 battery)
  • Exceptional drilling speed – drills through reinforcing bar up to 200% faster than predecessors
  • More run time per charge – drills up to twice as long as comparable SDS Plus rotary hammers thanks to the combination of brushless motor and revolutionary Nuron batteries
  • Versatility – with a wider optimal drilling range and extensive range of chisel bits and hole saws available, TE 30-22 is an extremely versatile tool with a wide range of capabilities for any jobsite
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams

Applications

  • Drilling anchor holes in concrete and masonry (recommended diameter range 10-28 mm)
  • Drilling holes for reinforcing bar doweling
  • Virtually dust-free drilling (TE DRS-C or TE DRS-D vacuum cleaner connector required)
  • light-duty chiseling – such as tile scraping, channel cleaning and surface correction
  • Occasional drilling in wood and steel (optional quick-release chuck required)

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
