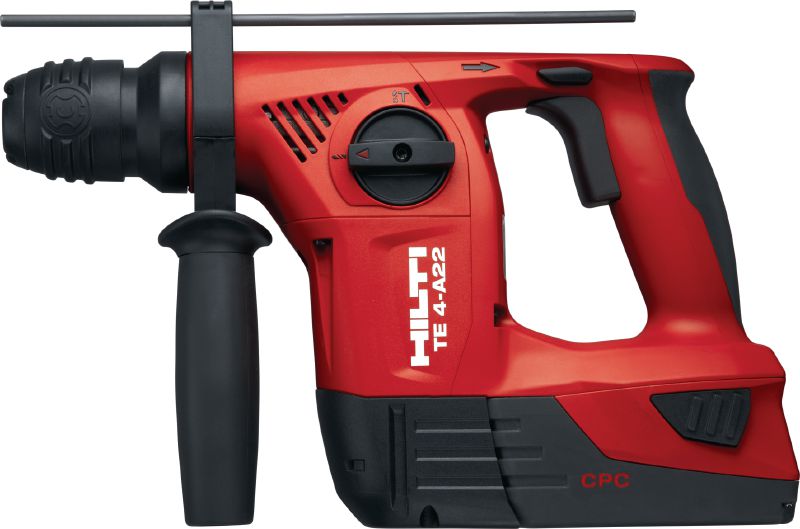

TE 4-A22 Cordless rotary hammer
Compact D-grip 22V cordless rotary hammer with superior handling in serial applications
- Weight according to EPTA-Procedure 01/2003 without battery: 3.3 kg
- Optimum Hammer drilling range: 5 - 12 mm
- Single impact energy: 2 J
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 364.35
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
3.3 kg
Optimum Hammer drilling range
5 - 12 mm
Single impact energy
2 J
Hammer drilling diameter range
4 - 18 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5200 impacts/minute
Functionality
Integrated Dust Removal System (DRS), Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
13.1 m/s² 1
A-weighted emission sound power level
99 dB (A) 2
A-weighted emission sound pressure level
88 dB (A) 3
Dust removal system available
TE DRS-4-A, TE DRS-D, TE DRS-S
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Ergonomically designed D-grip for comfortable use over long periods
- Robustly built and engineered specifically for high-performance cordless drilling
- Excellent performance-to-weight ratio, with a compact design

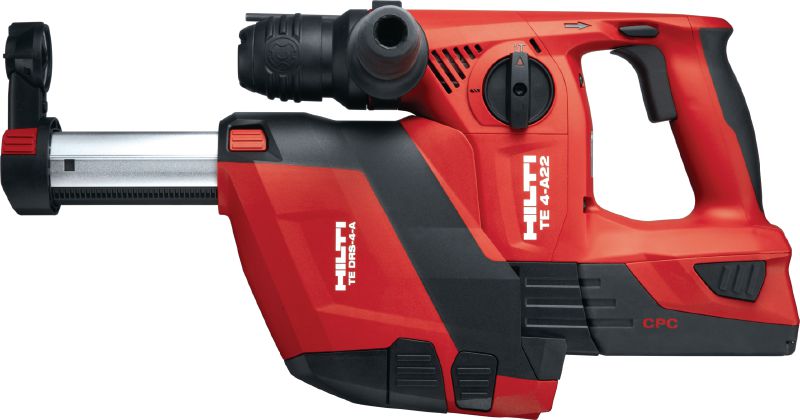

- Virtually dustless drilling when used with the DRS-4-A dust removal system
- Electronic switch for precise drilling
Applications

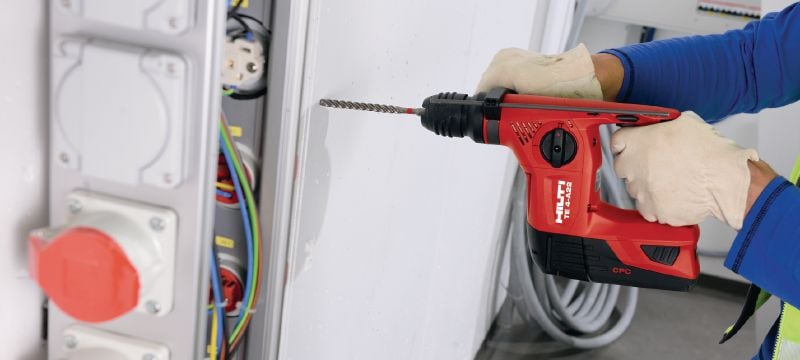

- Drilling and hammer drilling in concrete and masonry
- Occasional drilling in wood and steel with optional chuck adapter
- Screwdriving using the special bit holder with TE-C (SDS Plus) connection end

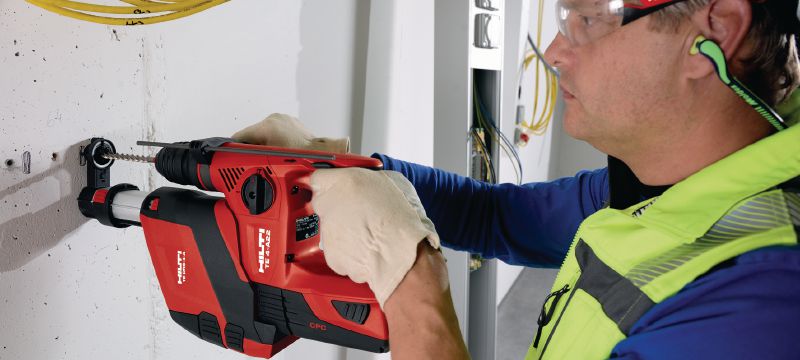

- Drilling in concrete in clean areas using the integrated dust removal system (DRS-4-A)
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- After no-cost period repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
- After no-cost period repair costs are capped for as long as we service the tool
- After every paid repair again 3-month no-repair-cost period
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
