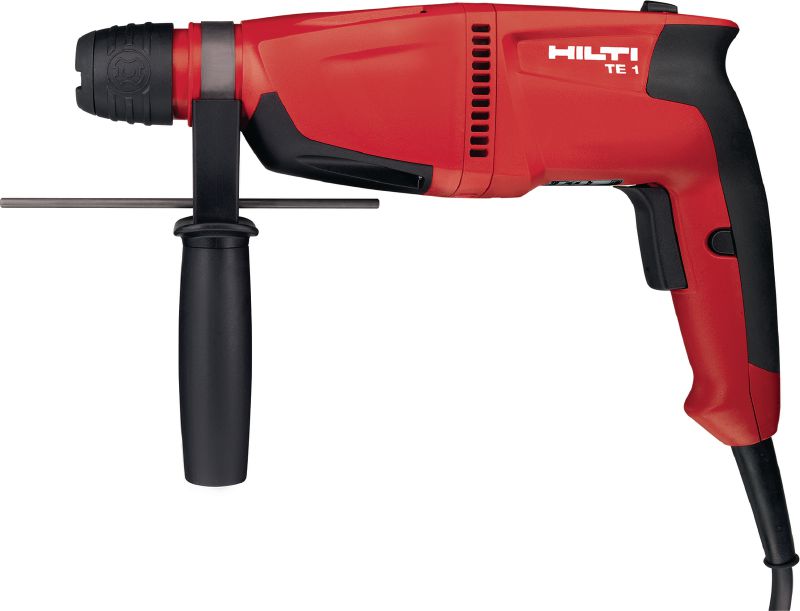

TE 1 Rotary hammer

Compact and light-weight single-mode, pistol-grip SDS Plus (TE-C) rotary hammer – for drilling in concrete

Weight according to EPTA-Procedure 01/2003 without battery: 2.4 kg
Optimum Hammer drilling range: 4 - 12 mm
Single impact energy: 1.5 J

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 110.00

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.4 kg

Optimum Hammer drilling range

4 - 12 mm

Single impact energy

1.5 J

Working mode

Hammer drilling

Hammer drilling diameter range

4 - 16 mm

Hammer drilling RPM

930 rpm

Full hammering frequency

4500 impacts/minute

Functionality

Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.6 m/s² ¹

A-weighted emission sound pressure level

92 dB (A) ²

Dimensions (LxWxH)

330 x 79 x 203 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

One-mode SDS Plus (TE-C) rotary hammer (hammer drilling)
Sturdy motor with high load rating for maximum reliability
High comfort due to compact size, light weight and quick-change TE-C Click chuck
Electronic switch for precise drilling
Lock-on button for continuous use

Applications

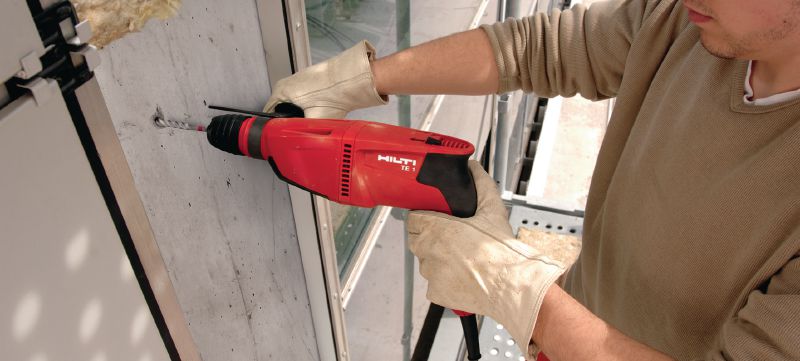

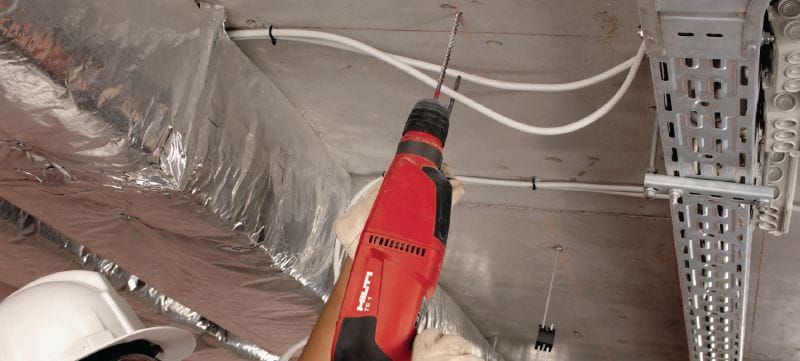

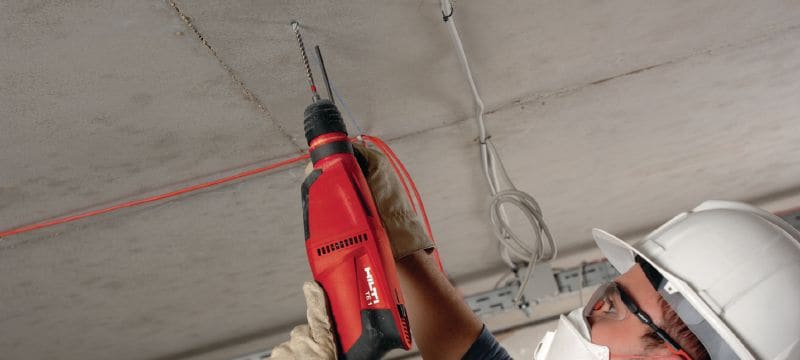

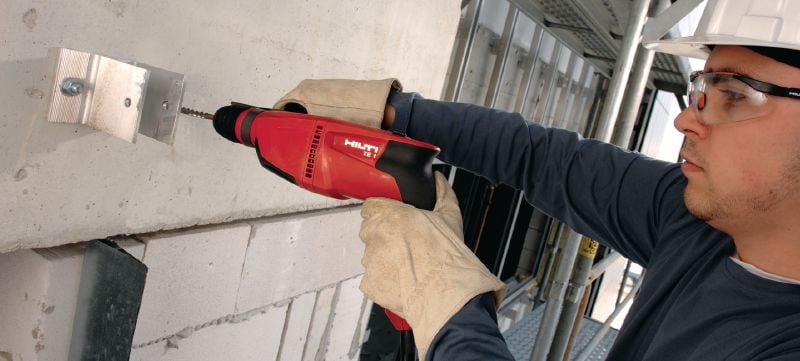

Daily hammer drilling in concrete, masonry and natural stone
Reverse feature assists in the removal of stuck drill bits

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
After no-cost period repair costs are capped
Product warranty against parts and manufacturing irregularities for as long as we service the tool
Product warranty against parts and manufacturing irregularities for 20 years

More information about Tool Services

LifeTime Services

2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
After no-cost period repair costs are capped for as long as we service the tool
After every paid repair again 3-month no-repair-cost period
Materials and workmanship warranty over the entire life of the tool
Pick-up and delivery service

More information about LifeTime Services
