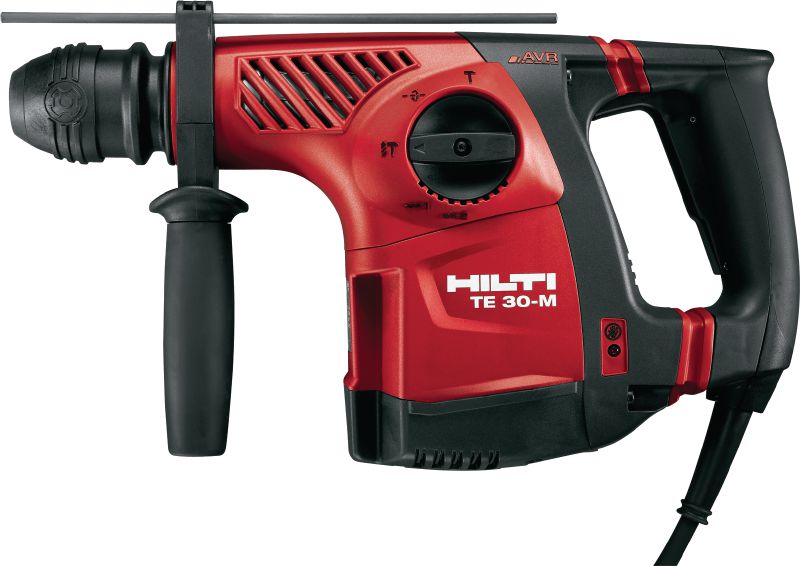

TE 30-M AVR Rotary hammer

25676.tif
25672.tif
25673.tif
TE 30-M-AVR

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiseling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 4.4 kg
  • Optimum Hammer drilling range: 10 - 28 mm
  • Single impact energy: 3.3 J

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
4.4 kg
Optimum Hammer drilling range
10 - 28 mm
Single impact energy
3.3 J
Working mode
Hammer drilling, Drilling, Chiseling
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
750 rpm
Full hammering frequency
4080 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiseling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12 m/s² 1
Triaxial vibration for chiseling into concrete
12 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Dimensions (LxWxH)
379 x 93 x 213 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (AR) [ 926.7 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.1 KB ]

Features & Applications

Features

  • SDS Plus (TE-C) rotary hammers for all-round use, with 2nd gear and chiseling function
  • Optimum speed even under high load thanks to constant-speed electronics – speed is maintained automatically
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Superior working comfort thanks to perfect balance, low weight, compact design and low vibration
  • Ruggedly built from high-grade materials and components for unbeaten, extra-long lifetime

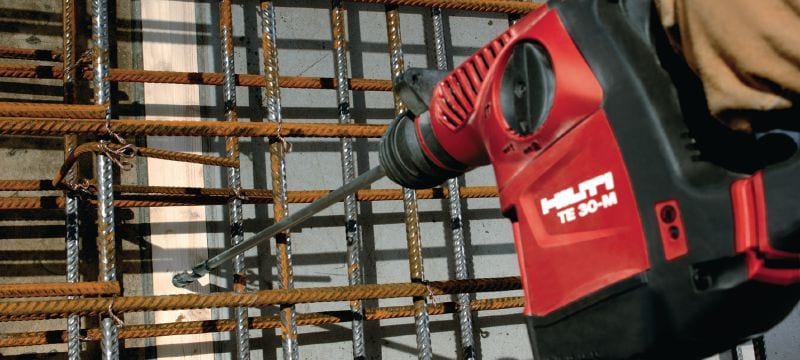

Applications

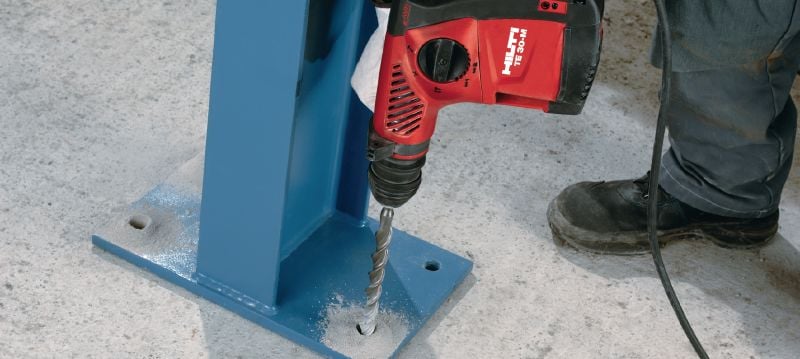

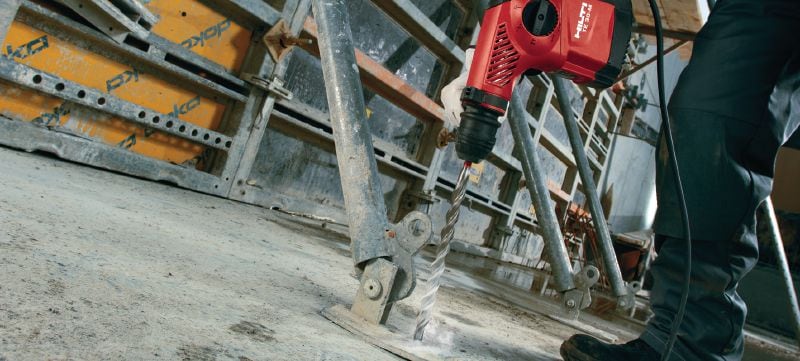

  • Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 8-20 mm
  • Socket cutting in concrete and masonry using percussion core bits (66-82 mm diameter), in brickwork and sand-lime block using diamond socket cutters (66-82 mm diameter), in wood and drywall panels using hole saws (35-105 mm diameter)
  • Drilling in wood with 10-35 mm diameter formwork / installation bits
  • Mixing applications, e.g. paint, plaster, etc.
  • Drilling in wood and metal using the keyless chuck and drill bits with smooth shank up to 13 mm diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every paid repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
