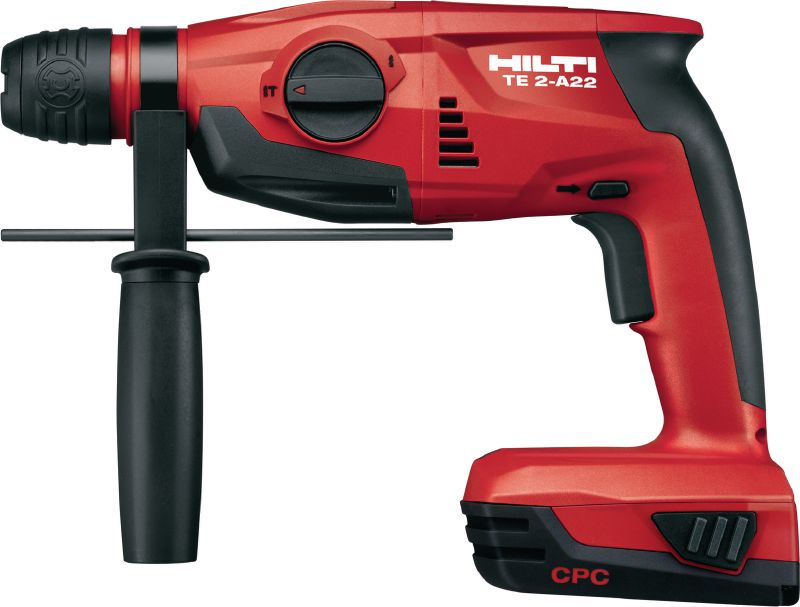

TE 2-A22 Cordless rotary hammer

Compact pistol-grip 22V cordless rotary hammer for superior handling

Weight according to EPTA-Procedure 01/2003 without battery: 2.7 kg
Optimum Hammer drilling range: 4 - 12 mm
Single impact energy: 1.5 J

Customers also searched for cordless rotary hammer, cordless rotary hammer drill, sds rotary hammer, sds rotary hammer drill or rotary hammer drill.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.7 kg

Optimum Hammer drilling range

4 - 12 mm

Single impact energy

1.5 J

Hammer drilling diameter range

4 - 16 mm

Hammer drilling RPM

980 rpm

Full hammering frequency

5040 impacts/minute

Functionality

Working light LED, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.7 m/s² ¹

Triaxial vibration for chiseling into concrete

12.7 m/s² ²

A-weighted emission sound power level

103 dB (A) ³

A-weighted emission sound pressure level

92 dB (A) ⁴

Dust removal system available

TE DRS-D, TE DRS-S

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

Compact cordless tool which delivers corded power without the cord
Compact size and light weight for superior handling
LED work light provides direct illumination of the work surface
Best-in-class durability backed by Hilti Lifetime Service covering the tool and accessories

Applications

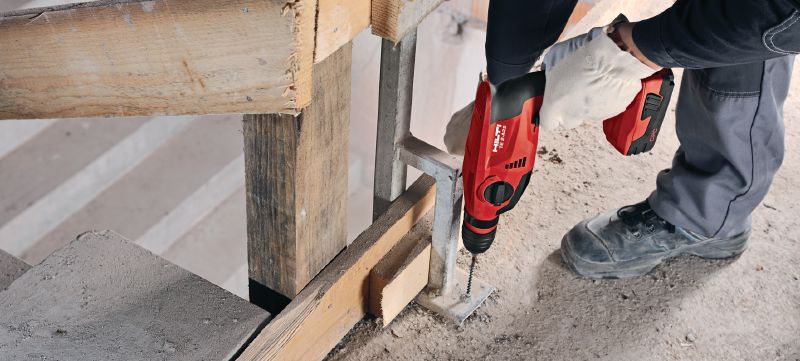

Construction: Light-duty drilling in concrete and masonry

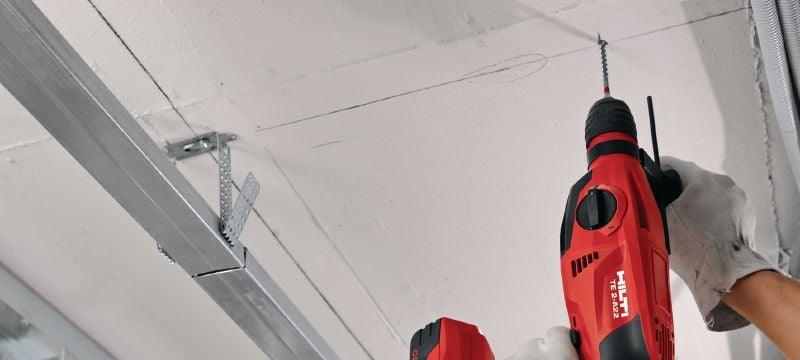

Interior finishing: Installing partition walls and suspended ceilings

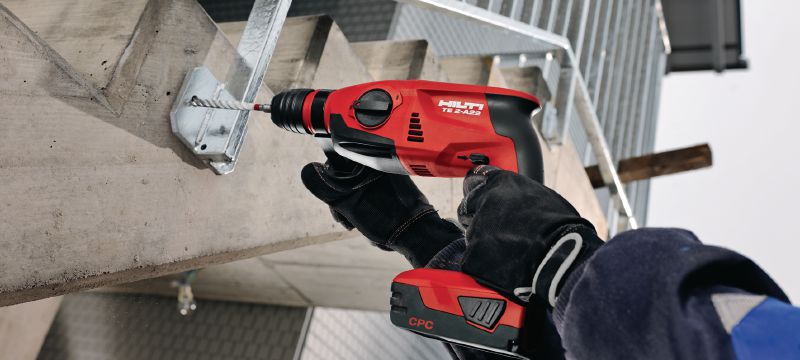

Metal fabricators: Fastening metal items such as handrails, staircases, sun blinds, barriers, etc.
Electricians: Electrical installation work
Telecom contractors: Installing telecom equipment, cables and switchgear

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
After no-cost period repair costs are capped
Product warranty against parts and manufacturing irregularities for as long as we service the tool
Product warranty against parts and manufacturing irregularities for 20 years

More information about Tool Services

LifeTime Services

2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
After no-cost period repair costs are capped for as long as we service the tool
After every paid repair again 3-month no-repair-cost period
Materials and workmanship warranty over the entire life of the tool
Pick-up and delivery service

More information about LifeTime Services
