new

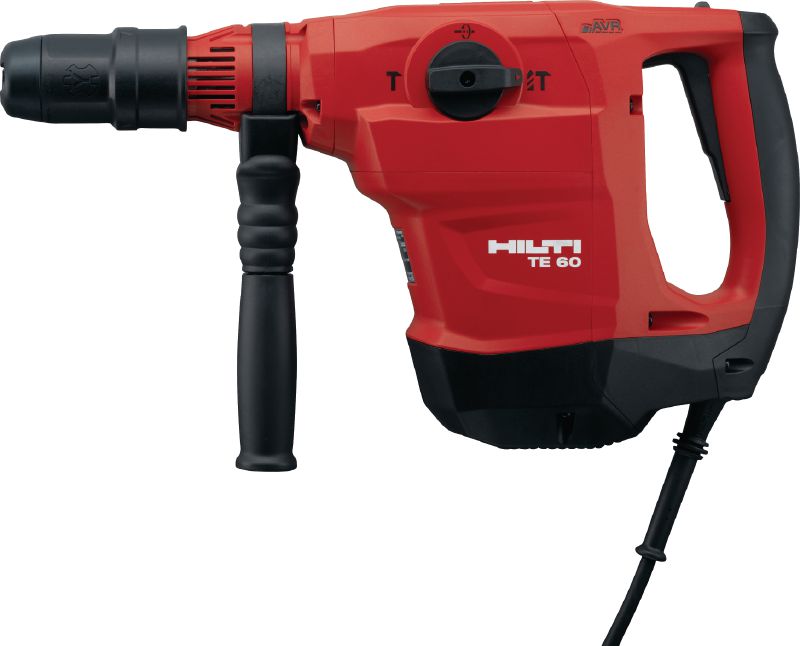

TE 60-AVR Rotary hammer

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiseling, with Active Vibration Reduction (AVR)

Weight according to EPTA-Procedure 01/2003 without battery: 6.8 kg
Weight class: 6 kg
Single impact energy: 7.8 J

Customers also searched for concrete drill , rotary hammer , hammer drill , rotary hammer drill or SDS MAX Rotary Hammer.

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 535.00

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

6.8 kg

Weight class

6 kg

Single impact energy

7.8 J

Hammer drilling diameter range

12 - 100 mm

Optimum Hammer drilling range

18 - 37 mm

Hammer drilling RPM

340 rpm

Full hammering frequency

3300 impacts/minute

Functionality

Active Vibration Reduction (AVR), Chiseling

Triaxial vibration value for hammer drilling into concrete (ah,HD)

10.5 m/s² ¹

Dust removal system available

TE DRS-Y, TE DRS-D, TE DRS-BK

Triaxial vibration for chiseling into concrete

9.1 m/s² ²

Rated input power

1350 W

Dimensions (LxWxH)

486 x 115 x 273 mm

A-weighted emission sound power level

107 dB (A) ³

A-weighted emission sound pressure level

99 dB (A) ⁴

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

High versatility for a wide range of drilling and chiseling applications
Exceptionally high performance-to-weight-ratio
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
Optional DRS-Y dust removal system collects up to 95% of dust
Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

Applications

Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)
Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3 1/8")
Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
After no-cost period repair costs are capped
Product warranty against parts and manufacturing irregularities for as long as we service the tool
Product warranty against parts and manufacturing irregularities for 20 years
3-month no-cost period after each paid repair

More information about Tool Services

Fleet Management

Individual labels and online visibility provide tool fleet transparency.
Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
High-performing tools and latest technology help to increase jobsite productivity.
Loan tools during repair to reduce downtime.
Temporary tools for peak times and special applications help to reduce investments.

More information about Fleet Management

LifeTime Services

2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
After no-cost period repair costs are capped for as long as we service the tool
After every paid repair again 3-month no-repair-cost period
Materials and workmanship warranty over the entire life of the tool
Pick-up and delivery service

More information about LifeTime Services
