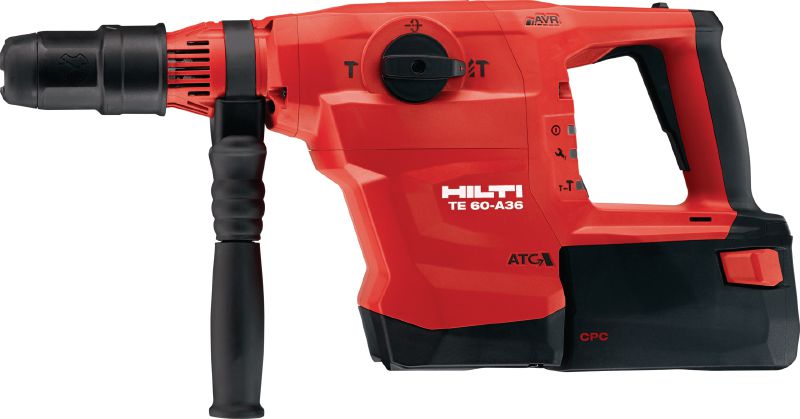

TE 60-A36 Cordless rotary hammer

Cordless combihammer TE 60-A36 #2191222

Configurator
Technical Data
Documents
Features & Applications
Related Products
SDS-Max Cordless Combihammer
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete

High-performance cordless SDS Max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete

  • Weight according to EPTA-Procedure 01/2003 without battery: 8.1 kg
  • Optimum Hammer drilling range: 18 - 40 mm
  • Hammer drilling diameter range: 12 - 40 mm

Customers also searched for concrete drill , rotary hammer , hammer drill , cordless hammer drill or rotary hammer drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 1,303.60
BD 1,303.60
/
1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
8.1 kg
Optimum Hammer drilling range
18 - 40 mm
Hammer drilling diameter range
12 - 40 mm
Rated voltage
36 V
Single impact energy
8.1 J
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
9.0 m/s² 1
Triaxial vibration for chiseling into concrete
8.6 m/s² 2
Dust removal system available
TE DRS-Y, TE DRS-D
A-weighted emission sound pressure level
101 dB (A) 3
A-weighted emission sound power level
109 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (AR) [ 926.7 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.1 KB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Brushless motor for exceptionally high performance and superior system efficiency
  • High versatility for a wide range of drilling and chiseling applications

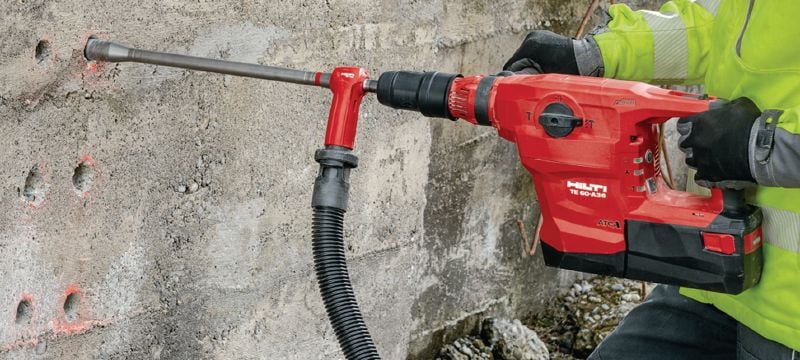

  • Optional DRS-Y dust removal system collects up to 95% of dust

Applications

  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)

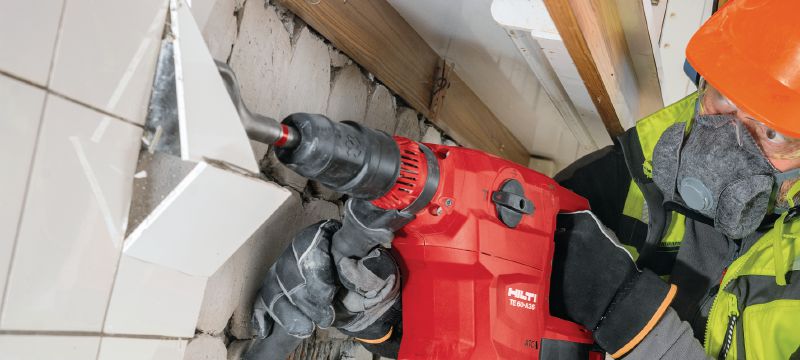

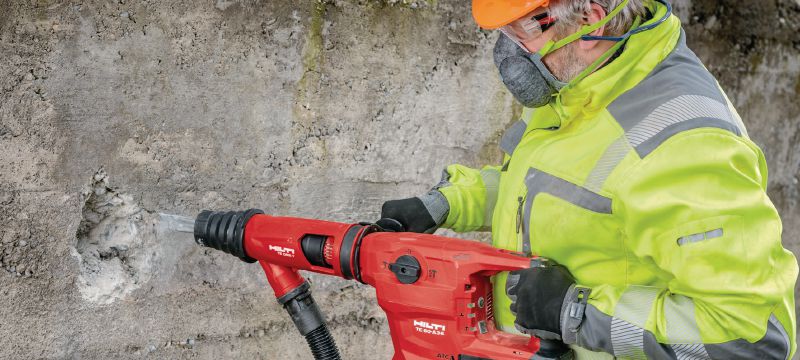

  • Medium-duty demolition work

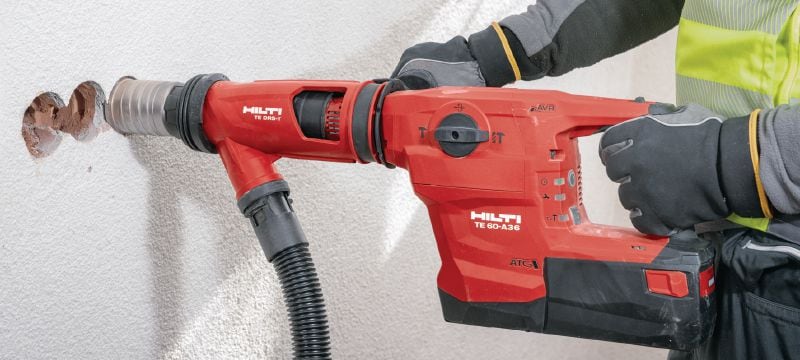

  • Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
  • Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")
