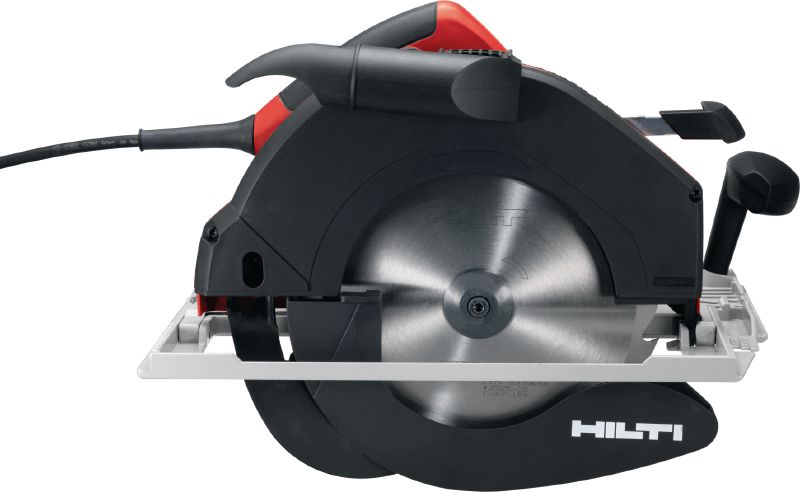

WSC 85 Circular saw
Circular saw with combined plunge and pendulum for heavy-duty straight cuts up to 85 mm depth
- Max. cutting depth: 85 mm
- Blade diameter - range: 207 - 230 mm
- Cutting depth at 45 degrees: 60 mm
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 1,260.28
Technical Data
Max. cutting depth
85 mm
Blade diameter - range
207 - 230 mm
Cutting depth at 45 degrees
60 mm
No load RPM
gear 1: 4500 rpm
Base material
Wood
Weight according to EPTA-Procedure 01/2003 without battery
7.8 kg
A-weighted emission sound pressure level
97 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
2.5 m/s² 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- Combined plunge and pendulum action
- One circular saw, two functions
- Fast blade stop
- Precise vertical plunge action with two plunge alignment marks on the baseplate
- Variable cutting depth settings up to 85 mm (lockable)
Applications
- Ripping and cross-cutting, plunge cuts, bevel/miter cuts up to 60°
- General carpentry work such as cutting rafters to length, cutting tenons, trimming roof battens to length, square-edging of rough planks
- Bevel/miter cuts up to 60°
- General carpentry work such as cutting rafters to length, cutting tenons, trimming roof battens to length
- Square-edging of rough planks
For approval or certificate information, please see individual items.
