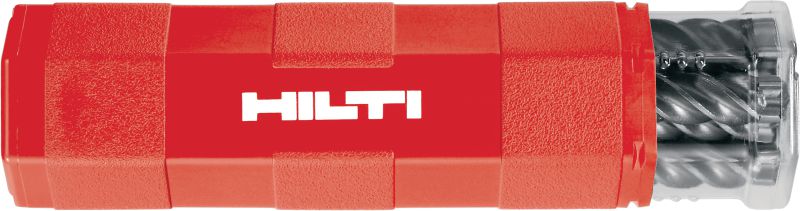

TE-CX (SDS Plus) Imperial hammer drill bit
Ultimate SDS Plus (TE-C) hammer drill bit for anchor drilling into reinforced concrete (imperial)
- Connection end: TE-C (SDS Plus)
- Base material: Reinforced concrete, Concrete, Brick, Masonry
- Working mode: Hammer drilling
ultimate
Customers also searched for SDS plus , concrete drill bit , masonry drill bit , sds plus bit or concrete bit .
Choose options
Diameter
- 25.4 mm
Working length
- 200 mm
- 400 mm
Length
- 270 mm
- 480 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 116.83
Technical Data
Connection end
TE-C (SDS Plus)
Base material
Reinforced concrete, Concrete, Brick, Masonry
Working mode
Hammer drilling
Head shape
Multi Cutter
Head material composition
Tungsten carbide
Number of cutting edges
4
Product Class
Ultimate
Features & Applications
Features
- New solid carbide head has high wear-resistance and makes more precise holes for anchor setting – up to 30% more lifetime than other SDS Plus drill bits
- Solid carbide head featuring gradient technology – engineered to drill easily through rebar
- Quadruple helix and optimum head geometry for consistently fast drilling speed over the entire life of the drill bit
- Indicator mark – the bit is suitable for setting anchors as long as this mark is visible
- In the unlikely event of breakage, the drill bit will be considered for replacement as long as the wear mark on the helix is still visible
Applications
- Drilling anchor holes in reinforced and unreinforced concrete
- Drilling holes for post-installed rebar connections
For approval or certificate information, please see individual items.
