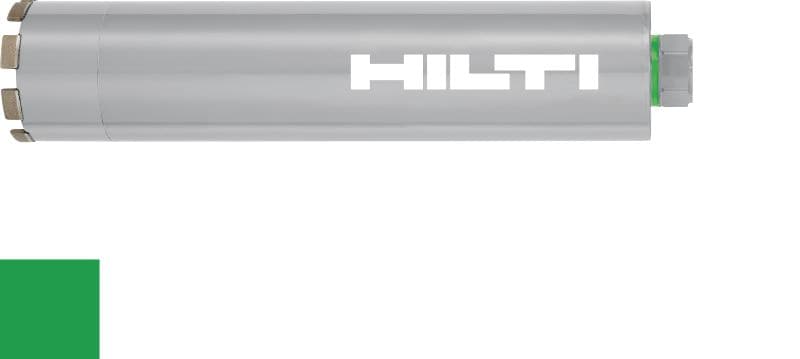

P-U abrasive core bit (brazeable)
Core bit B 202/430+ P-U abras #2261738
Standard core bit with replaceable diamond module for coring in very abrasive concrete – for all tools
- For use with: DD 150-U, DD 160, DD 200, DD 350-CA, DD 500-CA
- Base materials: Concrete (abrasive)
- Drilling Mode: Rig-mounted
standard
Choose options
Diameter
- 202 mm
Working length
- 430 mm
Connection end
- No connection end
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
For use with
DD 150-U, DD 160, DD 200, DD 350-CA, DD 500-CA
Base materials
Concrete (abrasive)
Drilling Mode
Rig-mounted
Wet or dry operation
Wet
Change module
Yes
Connection end
No connection end
Diameter
202 mm
Product Class
Standard
Working length
430 mm
Segment height
10 mm
Number of segments
16
Features & Applications
Features
- High performance – this core bit has been engineered for high-performance drilling in very abrasive concrete
- Long-lasting – uses 10 mm high diamond segments, helping you to get more done with the same core bit
- More robust – built using durable CD welding to help withstand your toughest jobsite conditions
- Versatile – compatible with core drills of all power classes

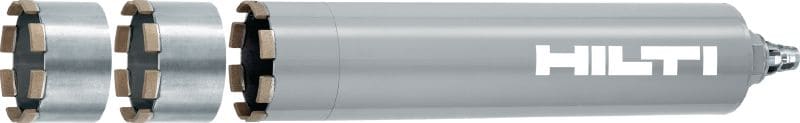

- Faster, easier re-tipping – built with a unique change module so you can easily replace just the abrasive segments, not the whole core bit
Applications
- Rig-based wet coring in very abrasive concrete
