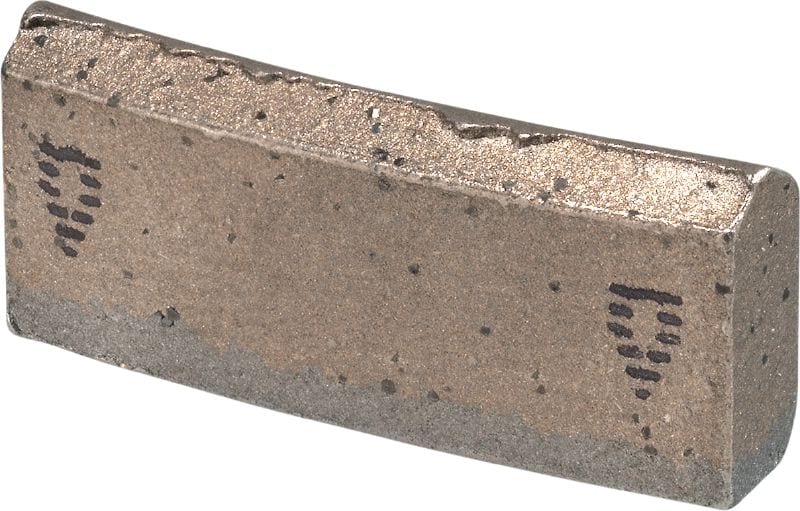

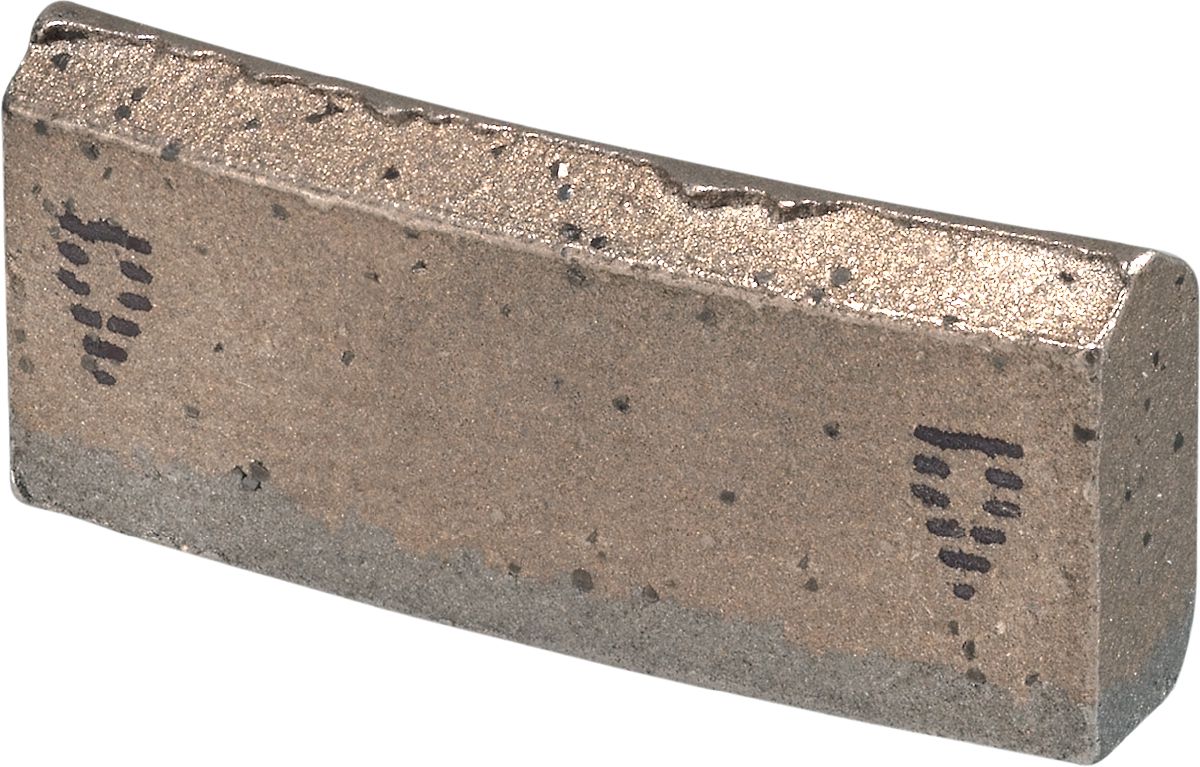

UCL diamond segment
Premium diamond segments for drilling with tools of any power class in all types of concrete
- For use with: DD 150-U, DD 160, DD 200, DD 350-CA, DD 500-CA
- Base materials: Concrete
- Drilling Mode: Rig-mounted
standard
Choose options
Diameter range
- 92 - 102 mm
- 172 - 202 mm
Pack size
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
For use with
DD 150-U, DD 160, DD 200, DD 350-CA, DD 500-CA
Base materials
Concrete
Drilling Mode
Rig-mounted
Wet or dry operation
Wet
Product Class
Standard
Features & Applications
Features
- Superior lifetime thanks to 12 mm diamond segment height
- High concentration of diamonds for good drilling speed
Applications
- Retipping core bits in the 35-302 mm diameter range
- Only rig-based drilling
- Only wet drilling (with water cooling)
- UCL (universal concrete lifetime) long-life diamond segments for retippinig core bits, suitable for universal use on concrete
For approval or certificate information, please see individual items.
