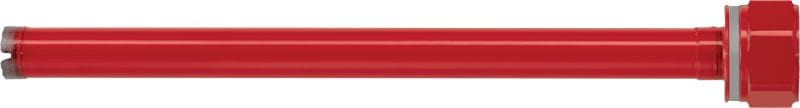

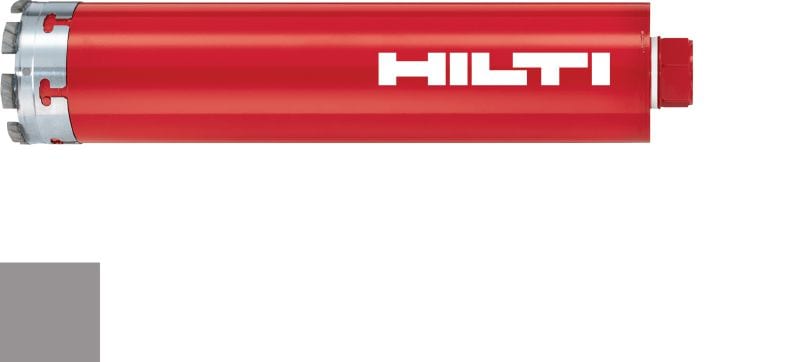

SPX-L core bit (mm)
Ultimate core bit for coring in all types of concrete – for <2.5 kW tools
- Base materials: Concrete
- Drilling Mode: Rig-mounted
- Wet or dry operation: Wet
Customers also searched for core drill bit, core bit, diamond core bit or SPX-L.
Choose options
Diameter
- 12 mm
- 14 mm
- 16 mm
- 18 mm
- 20 mm
- 22 mm
- 24 mm
- 42 mm
- 52 mm
- 62 mm
- 102 mm
- 112 mm
- 122 mm
- 132 mm
- 152 mm
- 162 mm
- 202 mm
Working length
- 320 mm
- 430 mm
Connection end
- BI (Hilti)
- BR (1/2 in)
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Base materials
Concrete
Drilling Mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
Yes (52-202 mm)
Laser welded segments
Yes
Segment height
10 mm
Documents
Features & Applications
Features
- Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
- Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
- Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
- Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content
Applications

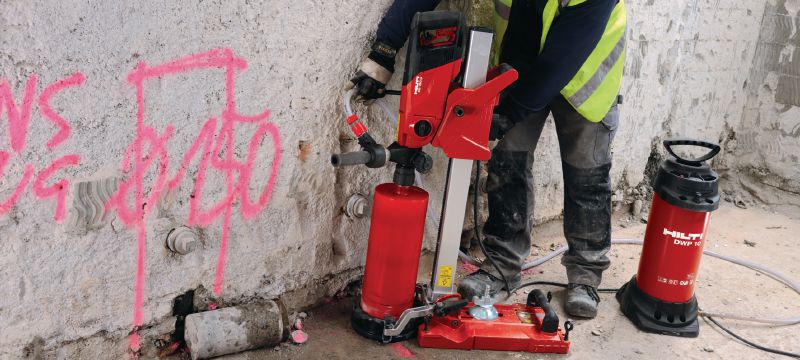

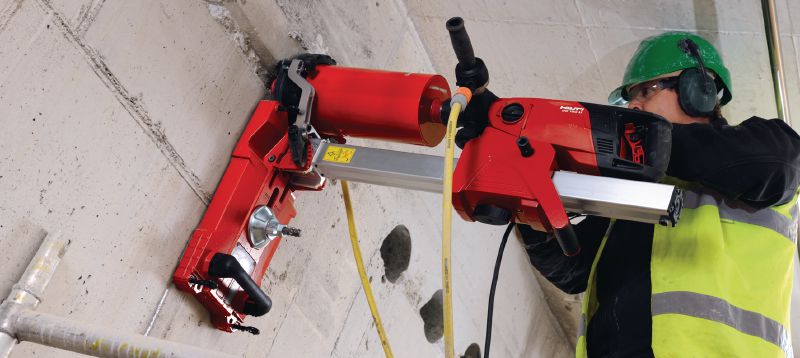

- Rig-based wet coring in all types of concrete
For approval or certificate information, please see individual items.
