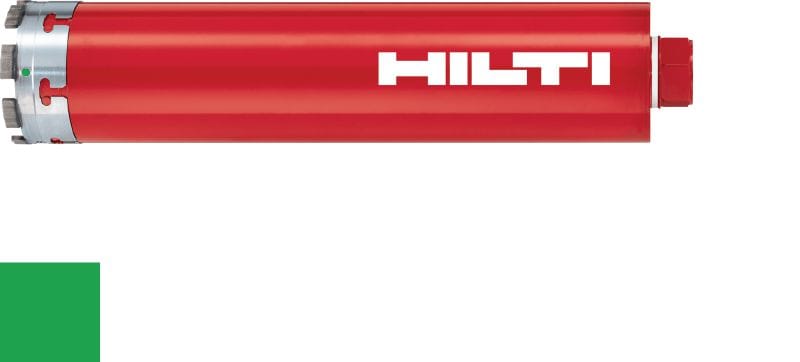

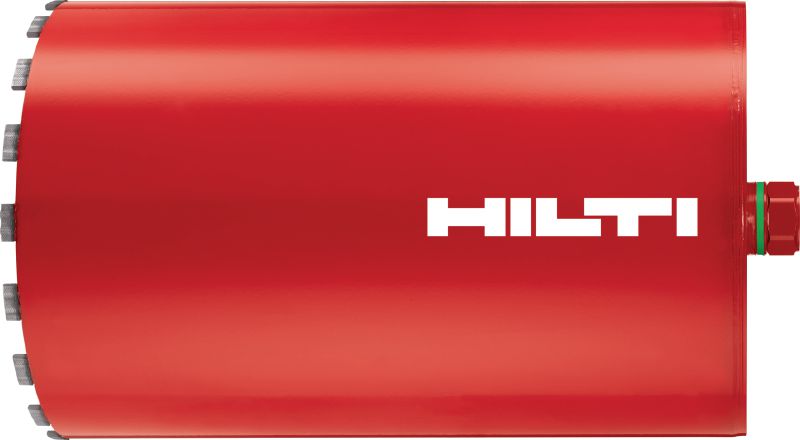

SPX-H abrasive core bit
Ultimate core bit for coring in very abrasive concrete – for ≥2.5 kW tools
- For use with: DD 200, DD 350-CA, DD 500-CA
- Base materials: Concrete (abrasive)
- Drilling Mode: Rig-mounted
Choose options
Diameter
- 35 mm
- 37 mm
- 40 mm
- 42 mm
- 47 mm
- 52 mm
- 62 mm
- 72 mm
- 77 mm
- 82 mm
- 102 mm
- 112 mm
- 122 mm
- 132 mm
- 162 mm
- 202 mm
- 225 mm
- 250 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 600 mm
Working length
- 430 mm
Connection end
- BL (Hilti)
- No connection end
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 163.30
Technical Data
For use with
DD 200, DD 350-CA, DD 500-CA
Base materials
Concrete (abrasive)
Drilling Mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
Yes (52-202 mm)
Laser welded segments
Yes
Connection end
BL (Hilti), BX (Pixie), BS (1-1/4 in), BU (Hilti)
Segment height
10 mm
Documents
Features & Applications
Features
- Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
- Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
- Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
- Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content
Applications
- Rig-based wet coring
- Coring in very abrasive concrete
For approval or certificate information, please see individual items.
Related Products
Diamond core bit tool accessories for changing X-Change modules (screw driver, removal tool)
