SP-H core bit

Configurator
Technical Data
Features & Applications
Related Products

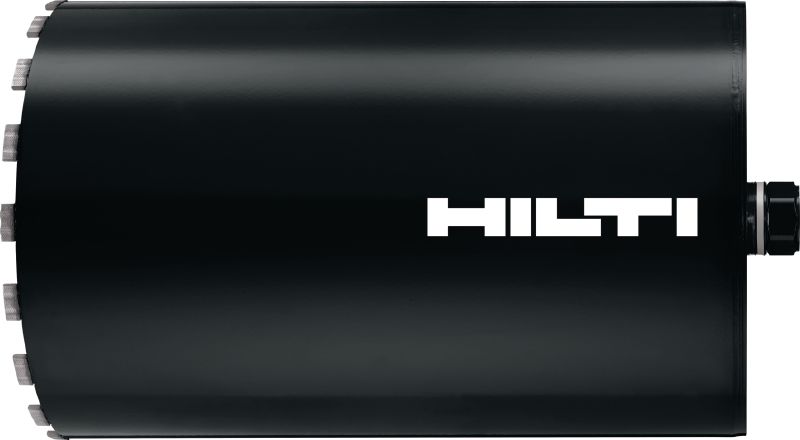

DD-B 102/450 SP-H core bit
DD-B 102/450 SP-H core bit
Large SP-H core bit with DD-B M41 connection end

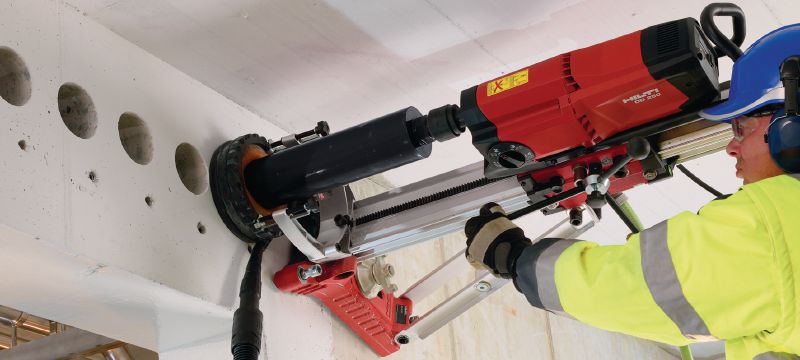

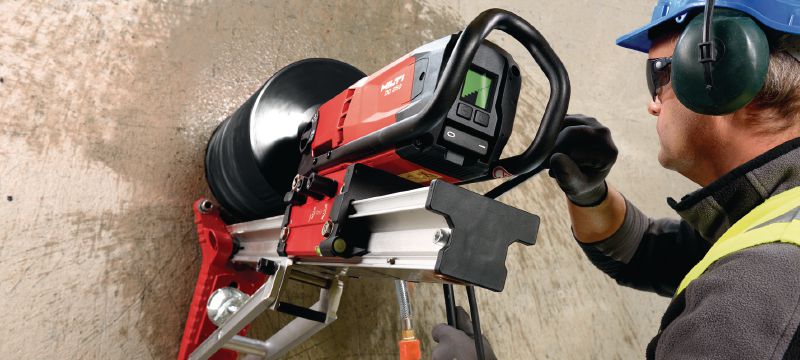

Rig-based wet coring in concrete
Rig-based wet coring in concrete

Premium core bit for coring in all types of concrete – for ≥2.5 kW tools

  • Base materials: Concrete
  • Drilling Mode: Rig-mounted
  • Wet or dry operation: Wet

Choose options

Diameter
  • 28 mm
  • 32 mm
  • 37 mm
  • 40 mm
  • 300 mm
  • 350 mm
  • 400 mm
  • 450 mm
  • 500 mm
Working length
  • 430 mm
  • 450 mm
Connection end
  • BS-F (1-1/4 in)
  • No connection end
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Base materials
Concrete
Drilling Mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
No
Laser welded segments
Yes
Connection end
BL (Hilti), BU (Hilti), BS (1-1/4 in), BX (Pixie)
Segment height
10 mm

Features & Applications

Features

  • Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance
  • Constant high drilling speed over the entire life of the core bit
  • Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content
  • Diamond core bit without the Hilti X-Change module system

Applications

  • Rig-based wet coring in all types of concrete

For approval or certificate information, please see individual items.
