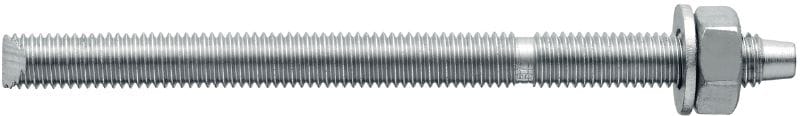

HAS-E-5.8 Anchor rod

High-performance anchor rod for adhesive capsules in concrete (5.8 carbon steel)

Anchor size - D

Anchor length - L

Material composition

Head configuration

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 14.49

Material, corrosion

Carbon steel, zinc-plated

Environmental conditions

Dry indoor

Base materials

Concrete (cracked), Concrete (non-cracked), Masonry (solid)

PROFIS Software

Yes

Approvals / Test reports

ETA, Fire, ICC-ES report (concrete), ICC-ES report (masonry)

Type of fixing

Pre-fastening

Large range of anchor rod sizes (M8-M24)
Designed for use with Hilti HVU capsules in solid concrete
Optimized design
Features a chisel tip to cut and mix the Hilti HVU capsule, embedment marking for easy setting and a conical head (M8-M24 only) to be used with separate setting tool
Short spacing and edge distances

Suitable for fastenings in concrete and other materials in combination with the relevant Hilti HIT injectable adhesive mortar
Suitable for fastenings in concrete in combination with Hilti HVU capsules

For approval or certificate information, please see individual items.
