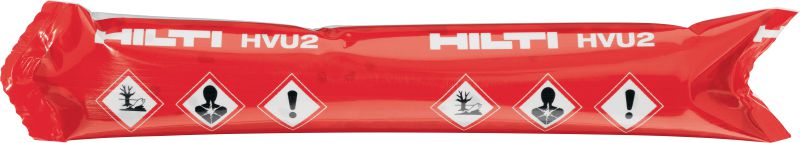

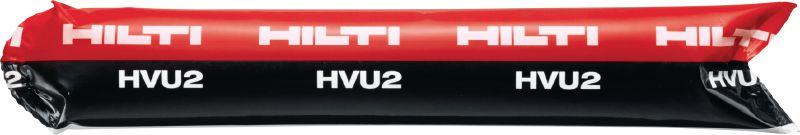

HVU2 Anchor capsule

Name: HVU2 Anchor capsule
Brand: Hilti
SKU: r6275

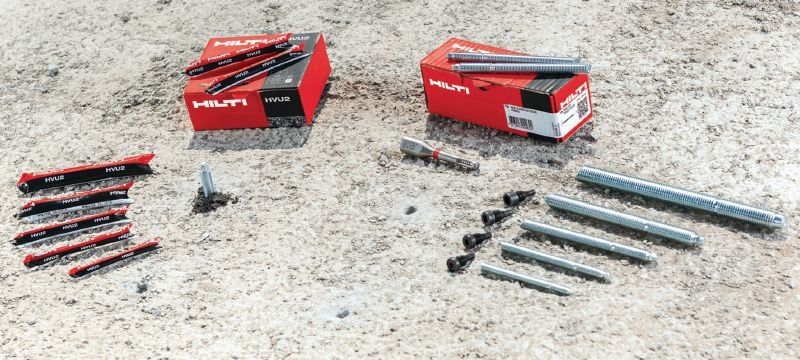

Ultimate-performance foil adhesive capsule for heavy-duty anchoring in concrete with Hilti chiseled tip HAS-U rods (sold separately).

Customers also searched for capsule, glass capsule or Chemical anchor.

Anchor size - D

Standard embedment depth

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 21.98

Approvals / Test reports

ETA, Fire

Base material condition (as per approval)

Dry, Wet

PROFIS Software

Yes

Material composition

Hybrid urethane methacrylate adhesive

Tested/approved for diamond drilling

Yes

In-service temperature – range

-40 - 120 °C

Storage and transportation temperature range

5 - 25 °C

Cleaning procedures

Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning

Tough and resilient soft foil capsule – no more risk of breakage like with glass capsules
Suitable for use under tough jobsite conditions including water-saturated holes and at low temperatures, even in diamond-cored holes
High performance in seismic and static conditions in cracked and uncracked concrete

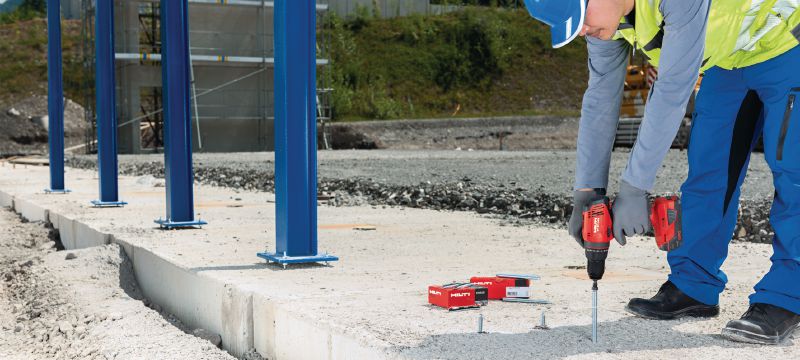

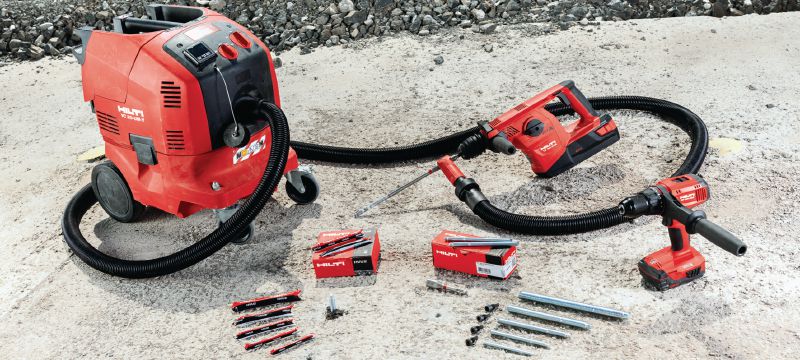

Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
Fast and convenient installation and no need to purchase a special setting tool

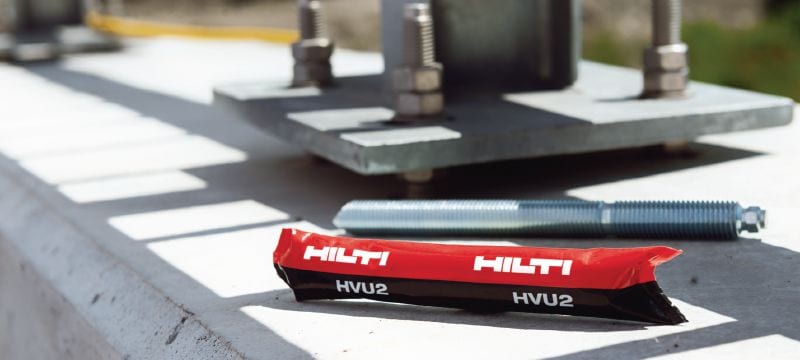

Anchoring steel structures (e.g. racking, guard rails, fences and gates)
Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)
Anchoring curtain wall facades

For approval or certificate information, please see individual items.
