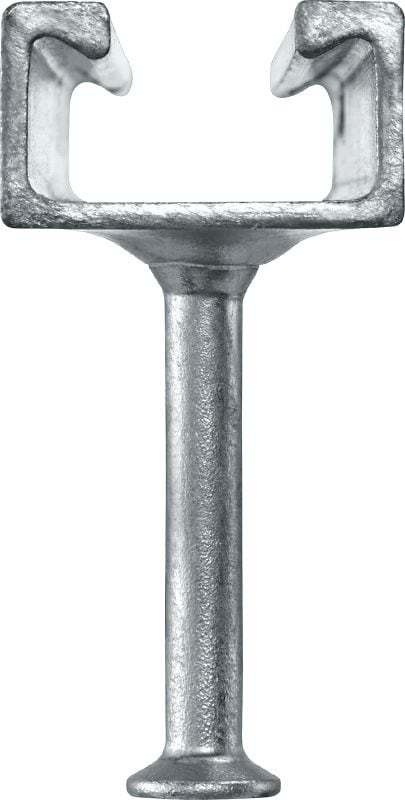

HAC-C Hot-rolled anchor channel

A.-Channel HAC-C 52/34 350 F #2168543

Configurator
Technical Data
Documents
Features & Applications
Related Products
Hot-rolled anchor channel often selected for applications with fatigue loading. Suitable for 3D loads, notched t-bolts and
Hot-rolled anchor channel often selected for applications with fatigue loading. Suitable for 3D loads, notched t-bolts and
HAC-C 40/22 Anchor Channel

Hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications

  • Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
  • Channel profile: HAC-C 52/34
  • Length: 350 mm

Choose options

Channel profile
  • HAC-C 52/34
Length
  • 350 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Channel profile
HAC-C 52/34
Length
350 mm
Standard embedment depth
155 mm
Anchor distance
150 mm
PROFIS Software
Yes

Documents

Approval document
Technical information
Sustainability Documentation
pdf ETA-17-0336_HAC-C_Anchor channel, German, English, Polish [ 40.1 MB ]

Features & Applications

Features

  • Hot-rolled channels with thick, sturdy profiles – engineered for high load resistance

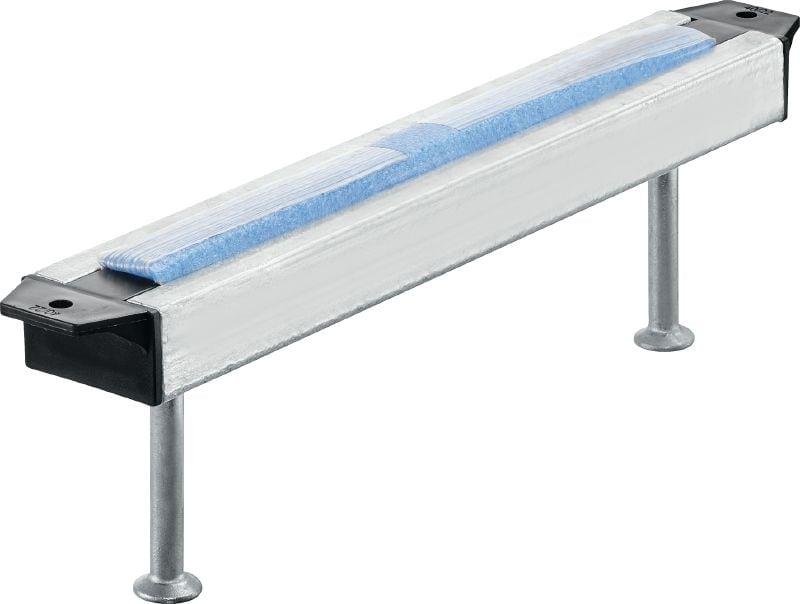

  • LDPE foam filler with grab tab – helps keeps concrete out of the channel and can be removed rapidly in one piece
  • Available in three sizes to fit virtually any installation – HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
  • ETA and fire approval documents available
  • Available in stainless steel and hot-dip galvanized versions – helping provide corrosion protection as needed for specific environmental conditions

Applications

  • Fastening production equipment (e.g. machines, conveyer belts)
  • Metro, railway or utility tunnels (e.g. fixing cantilever systems, supply pipes, signs, ventilation or support beams)
  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guiderails, sliding doors or divider beams)
  • Power plants
