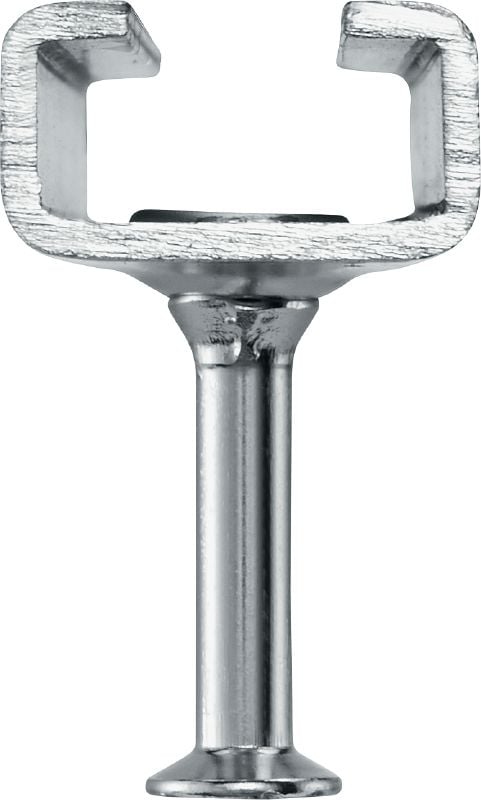

HAC-C Cold-formed anchor channel
Anchor channel HAC-C 28/15 3050 A4  #2168433
Cold-formed cast-in anchor channels in standard sizes and lengths for everyday applications
- Material, corrosion: Stainless steel, A4

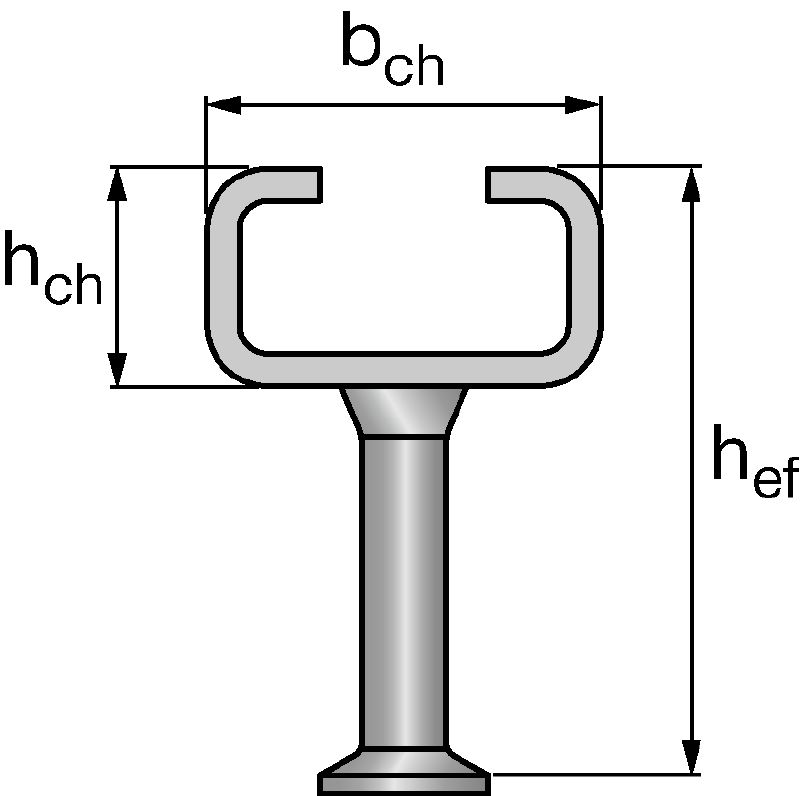

- Channel profile: HAC-C 28/15
- Length: 3050 mm
Choose options
Channel profile
- HAC-C 28/15
Length
- 3050 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
BD 143.84
BD 143.84 / 1 each
Technical Data
Material, corrosion
Stainless steel, A4
Channel profile
HAC-C 28/15
Length
3050 mm
Standard embedment depth
45 mm
Anchor distance
200 mm
PROFIS Software
Yes
Documents
Features & Applications
Features
- Cold-formed, rounded profiles with constant material thickness – ensuring uniform load capacity
- Versatile solution – engineered for everyday applications

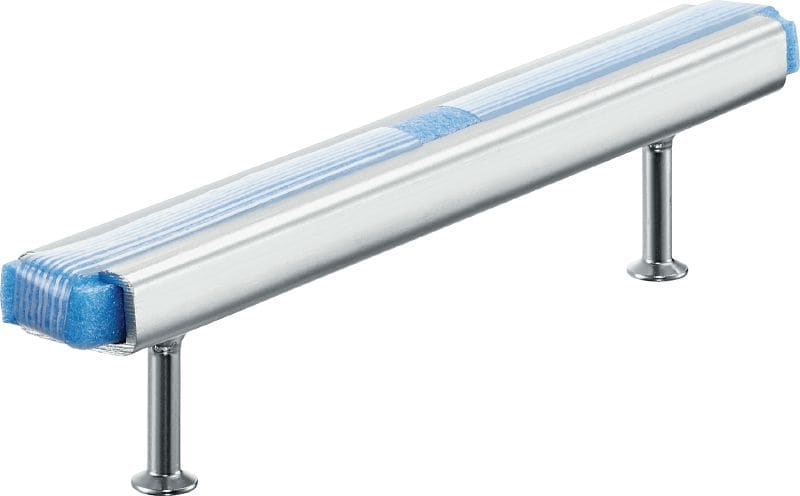

- LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
- ETA and fire approval documents available
- Available in stainless steel and hot-dip galvanized versions – helping provide corrosion protection as needed for specific environmental conditions
Applications
- Building appliances (e.g. ventilation, heating)
- Stadium seating
- Precast components
