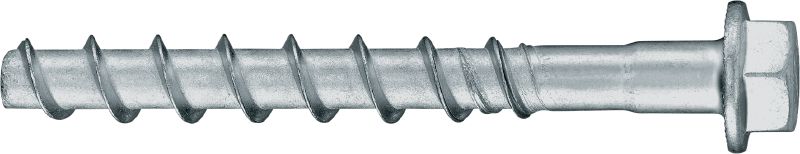

HUS2-H Concrete Screw Anchor
Premium-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Approvals / Test reports: ETA
Choose options
Anchor size - D
- 8 mm
- 10 mm
Anchor length - L
- 55 mm
- 60 mm
- 75 mm
- 85 mm
- 95 mm
- 105 mm
- 130 mm
Pack size
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From BD 30.95
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / Test reports
ETA
Base materials
Concrete (cracked), Concrete (uncracked)
Reusable (and removable)
Yes
Cleaning procedures
Manual Cleaning
PROFIS Software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Hexagonal head with integrated washer for neat appearance when fastening through in-place parts
- Two embedment depths for high design flexibility
- Technical data for reusability in fresh concrete available (10/15/20 N/mm²)
- ETA approval for use in cracked and uncracked concrete

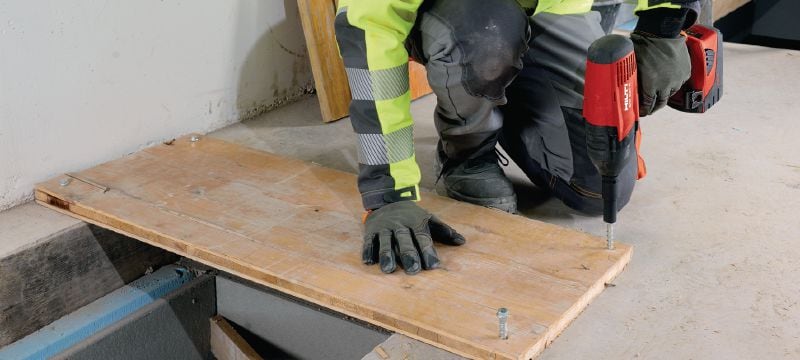

Applications
- Secondary steel and handrails
- Fastening channels and brackets
For approval or certificate information, please see individual items.
