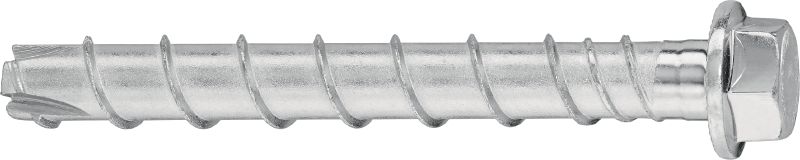

HUS3-H Screw anchor

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, hex head)

Anchor size - D

Anchor length - L

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 2.50

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Hex head

Approvals / Test reports

ETA, Fire, Seismic

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Reusable (and removable)

Yes

Cleaning procedures

Automatic Cleaning (SafeSet Hollow Drill Bit), Manual Cleaning, Non Cleaning

PROFIS Software

Yes

Environmental conditions

Dry indoor

Material composition

Steel, zinc-plated (min. 5 µm)

Tested/approved for diamond drilling

Higher productivity – less drilling and fewer operations than with conventional anchors

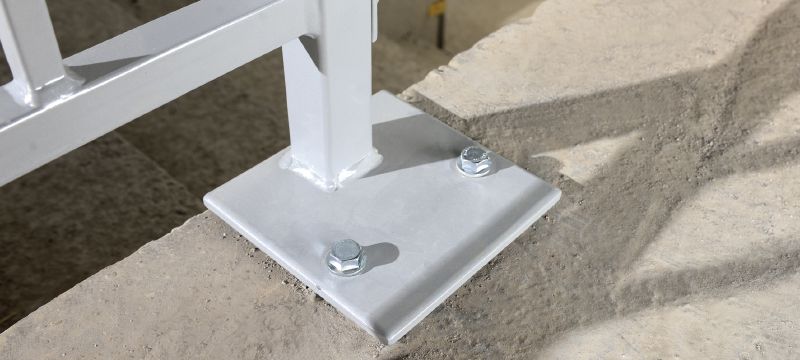

Hexagonal head with integrated washer for neat appearance when fastening through in-place parts

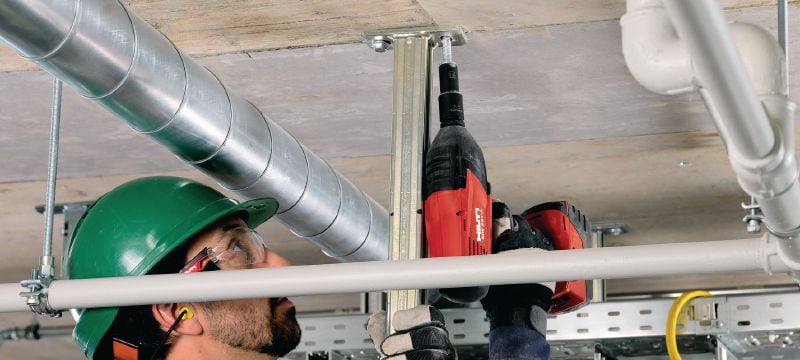

Ideal for overhead installation – greatly simplifies the work
Three embedment depths for maximum design flexibility
abZ (DiBt) approval for reusability in fresh concrete for temporary applications – fully-approved reusable system with gauges for all available diameters (8,10, 14 mm)
