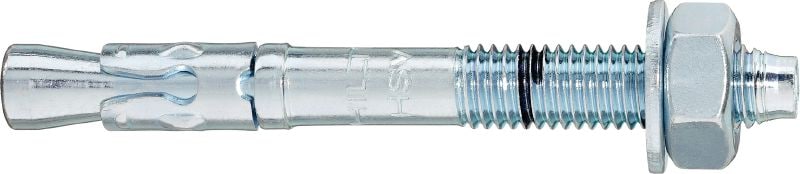

HSV Wedge anchor

Economical wedge anchor for static loads uncracked concrete (carbon steel)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Externally threaded
Approvals / Test reports: N/A

Choose options

Anchor size - D

Anchor length - L

75 mm
90 mm
100 mm
110 mm
120 mm
140 mm
150 mm

Pack size

16 pc
25 pc
30 pc
50 pc
100 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 28.02

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Externally threaded

Approvals / Test reports

N/A

Base materials

Concrete (non-cracked)

Type of fixing

Pre-fastening, Through-fastening

Installation tools

TE 2-A22 Cordless rotary hammer, TE 30-A36 Cordless rotary hammer

PROFIS Software

Documents

Features & Applications

Features

Made from cold-formed carbon steel, zinc-plated to 5µm
Two embedment depths for a wide range of fastening thicknesses
Setting mark for easy checking of correct installation depth
Raised impact section prevents thread damage during installation
Pre-assembled to save time

Applications

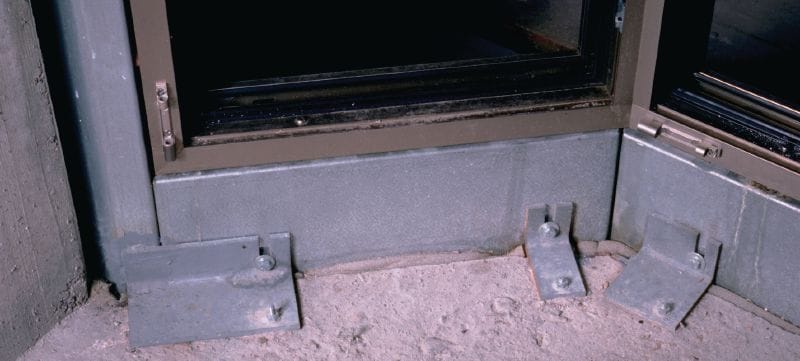

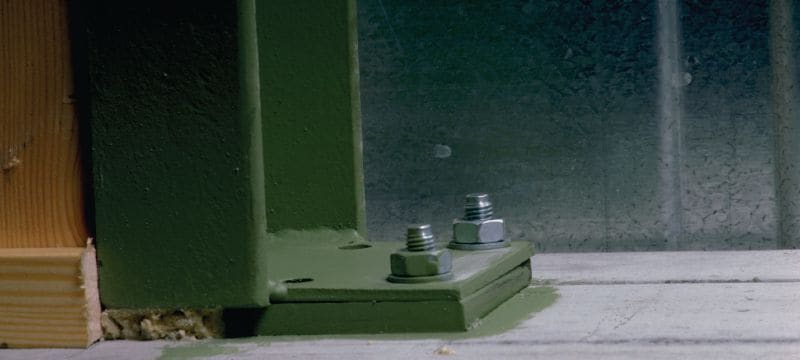

Wide range of applications in uncracked concrete

For approval or certificate information, please see individual items.
