X-C P8S Concrete nails (with washer)

Concrete nail X-C 27 P8 S23 #2091396

Configurator
Technical Data
Documents
Features & Applications
Related Products

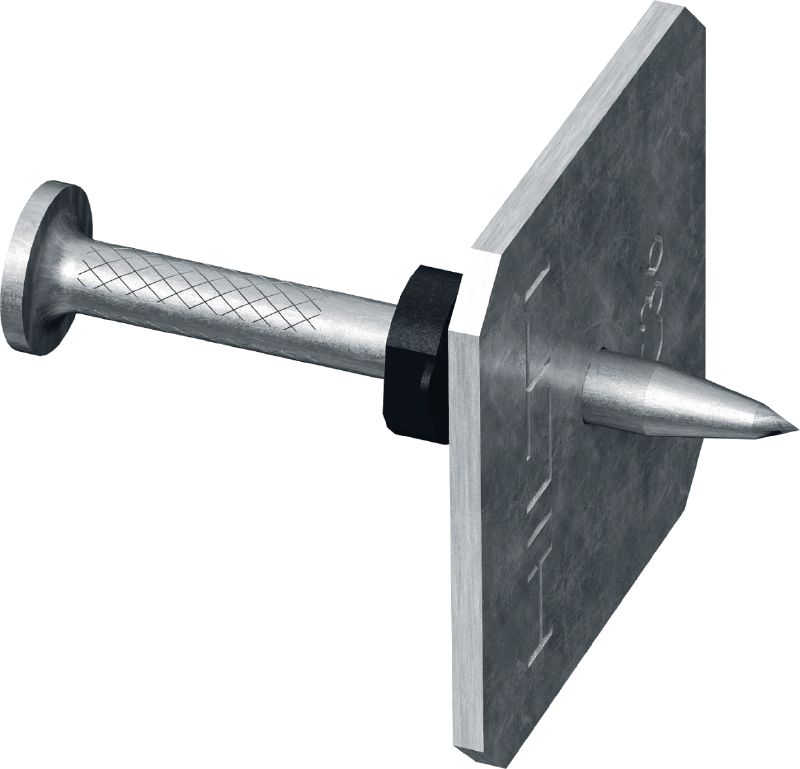

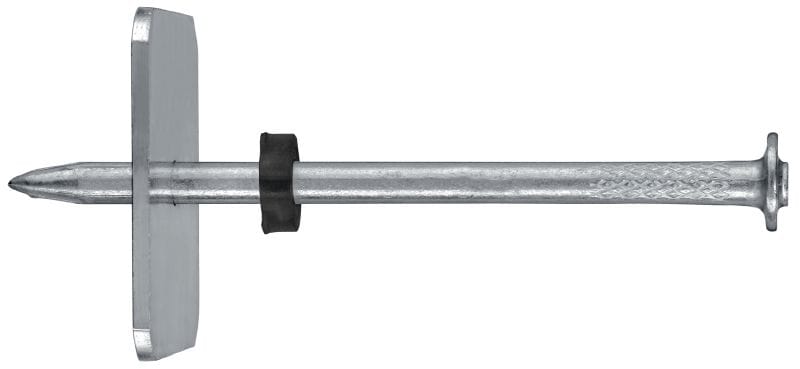

General-purpose nail for concrete, with steel washer

Single nail for fastening to concrete using powder-actuated nailers

  • Base materials: Concrete (soft), Masonry (solid limestone brick)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanized zinc coated <20 µm

Customers also searched for single nail for concrete, concrete nail with washer, concrete fastener with washer, powder-actuated fastener or single fastener with washer.

Choose options

Fastener shank length
  • 27 mm
Pack size
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 147.00
BD 0.15
/
1 each

Technical Data

Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.5 mm
Washer size
23 mm
Point type
Cut point
Approvals
ICC-ES
For use with (tools)
DX 2, DX 36, DX 460 F8, DX 5 F8, DX E721 F8

Documents

Technical information
Approval document
pdf X-C Data Sheet, English, German, Italian, French, Spanish, Polish [ 1.1 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Fastener with pre-mounted washer providing a larger bearing surface for improved clamping of fastened material
  • Pre-mounted steel washer offers maximum pull-over resistance for fastening soft materials to concrete
  • Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
  • Best suited for fastening to concrete with a hardness of up to 6,000 psi

Applications

  • Fastening wood to concrete, e.g. 2x4s, plywood, wood battens, formwork, kicker plates
  • Attaching a variety of materials to masonry block and concrete
  • Fastening wood profiles to concrete
  • Fastening termination bars to secure waterproofing membrane or moisture barriers
  • Wood to concrete, e.g. formwork boards, safety barriers, etc.
