DX 5-F8 Powder-actuated tool

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

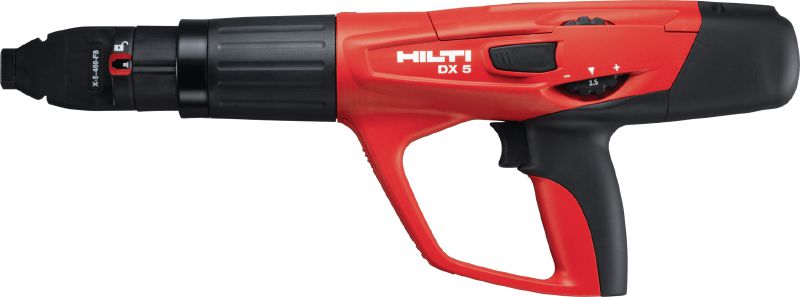

DX 5 F8, DX 5 F8, service indicator, display, bluetooth

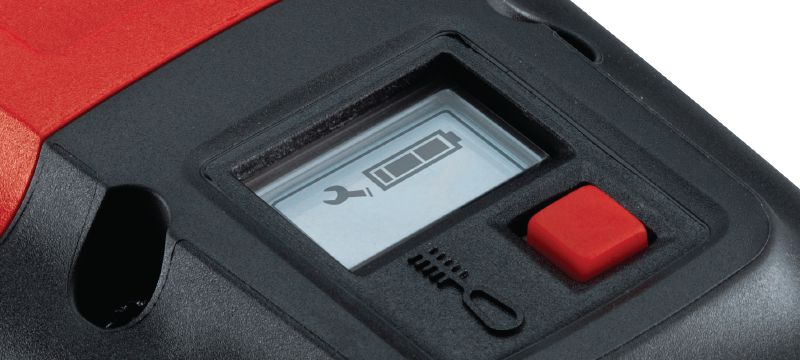

DX 5 service indicator with maintenance symbol
Powder_actuated_tool_DX_5_F8,_Building_&_Construction,_kickerboard,_wood_to_concrete

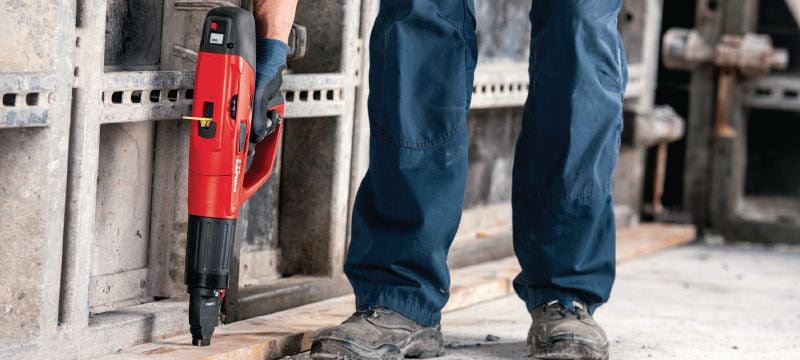

Powder_actuated_tool_DX_5_MX,_Building_&_Conctruction,_Formstop

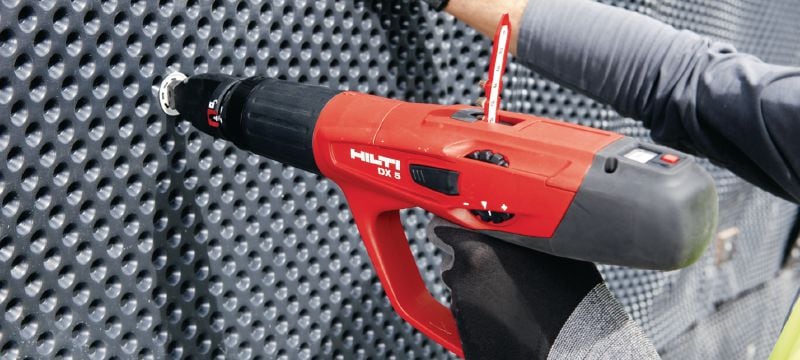

Powder actuated tool DX 5 F8, Building & Construction, water membrane, File name:

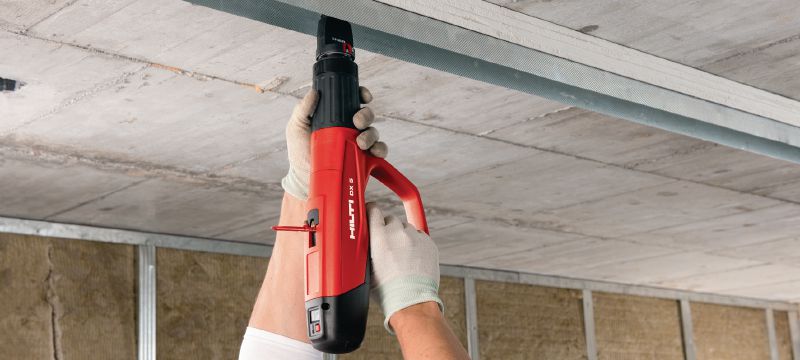

DX_5_F8,_DX_5_F8,_deflection_head,_track_fastening_to_ceiling,_interior_finishing,_X-U_concrete_nail

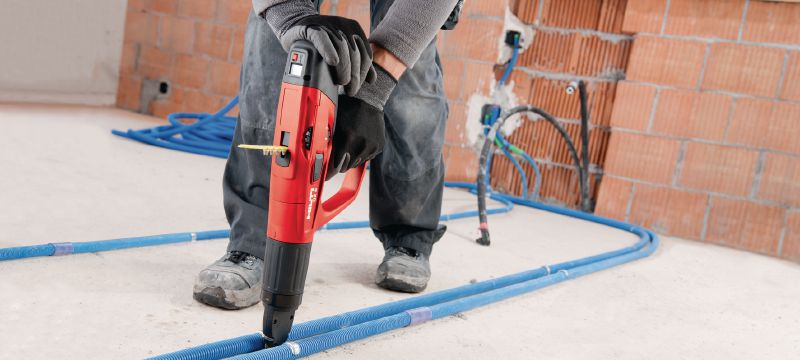

Powder_actuated_tool_DX_5_F8,_Electrical,_Conduits_to_floor

Digitally enabled, fully automatic, high-productivity and versatile powder actuated tool for fastening single nails

  • Dimensions (LxWxH): 478 x 72 x 180 mm
  • Weight: 3.37 kg
  • Fastener Intake: Single

Customers also searched for powder actuated fastening tool, concrete nailer, steel nailer or nail gun.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Dimensions (LxWxH)
478 x 72 x 180 mm
Weight
3.37 kg
Fastener Intake
Single
Fastener length range
12 - 72 mm
Cartridge type
.27 caliber short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
Yes
Hilti Connect
Yes
Power (max.)
325 J
Power regulation
Yes
Piston type
X-6-5-P8

Documents

Brochure
Technical information
Approval document
Material safety datasheet
pdf Service Indicator Instructions [ 996.7 KB ]

Features & Applications

Features

  • Smart tool that tells you when it requires cleaning or maintenance
  • Built-in connectivity with the Hilti Connect app – putting key tool data, how-to videos and technical support at the operator's fingertips
  • High productivity – fully automatic piston return and cartridge transport
  • Superb ergonomics and design with reduced recoil
  • Excellent power-to-weight ratio for fastening a wide variety of materials to concrete and steel

Applications

  • Fastening wood and metal sheet to concrete, sand-lime block masonry or steel
  • Fastening 2x4s to concrete
  • Attaching drainage foils and membranes to concrete or CMU block
  • Fastening perimeter wall, deflection or slip clips to concrete and steel
  • Installing Hilti formstop elements on concrete

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After no-cost period repair costs are capped for as long as we service the tool
  • After every paid repair again 3-month no-repair-cost period
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
