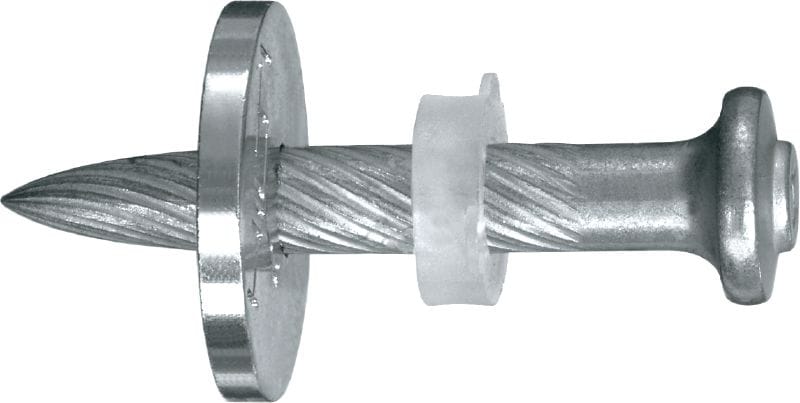

X-U P8 S Steel/concrete nails with washer

Universal nail X-U 16 S12 #237357

High-performance single nail with steel washer for fastening to concrete and steel using powder-actuated tools

Base materials: Concrete, Steel
Minimum thickness of base material (concrete): 80 mm
Corrosion protection: Galvanized zinc coated <20 µm

premium

Customers also searched for single nail for concrete, concrete nail with washer, concrete fastener with washer, powder-actuated fastener or single fastener with washer.

Choose options

Fastener shank length

16 mm

Pack size

100 pc

Product options

Quantity

Packs

Total Pieces

100

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

BD 29.90

BD 0.30 / 1 each

Technical Data

Base materials

Concrete, Steel

Minimum thickness of base material (concrete)

80 mm

Corrosion protection

Galvanized zinc coated <20 µm

Environmental Conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

4 mm

Washer size

12 mm

Point type

Ballistic point, knurled

Approvals

ABS, COLA, DIBt, IBMB, ICC-ES, LR

For use with (tools)

DX 460 F8S12, DX 462 F8S12, DX 5 F8S12

Product Class

Premium

Documents

Features & Applications

Features

Galvanized nails for fastenings on concrete or steel
Higher application limits, higher ultimate tensile loads
With preassembled washer providing increased pull-over values
Knurled point for better performance on high-strength steel and hard concrete

Applications

Fastening on steel support frames S 355 (St 52) 6-12 mm
Fastening steel sheets on steel support frames or substructures S 355 (St 52) 6-8 mm
Fastening wood on S 355 (St 52) steel substructures with a thickness of 6 mm
Fastening timber or steel brackets to steel or concrete where high pull-over strength is required
Fastening wood to concrete (even high-strength concrete) or steel
