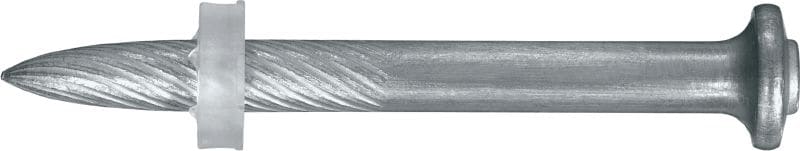

X-U P8 Steel/concrete nails

High-performance single nail for fastening to concrete and steel using powder-actuated tools

premium

Fastener shank length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 26.30

Base materials

Concrete (soft), Concrete (tough), Steel

Minimum thickness of base material (concrete)

80 mm

Minimum thickness of base material (steel)

6 mm

Corrosion protection

Galvanized zinc coated <20 µm

Environmental Conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

4 mm

Washer size

8 mm

Point type

Ballistic point, knurled

Approvals

ABS, COLA, DIBt, IBMB, ICC-ES, LR

For use with (tools)

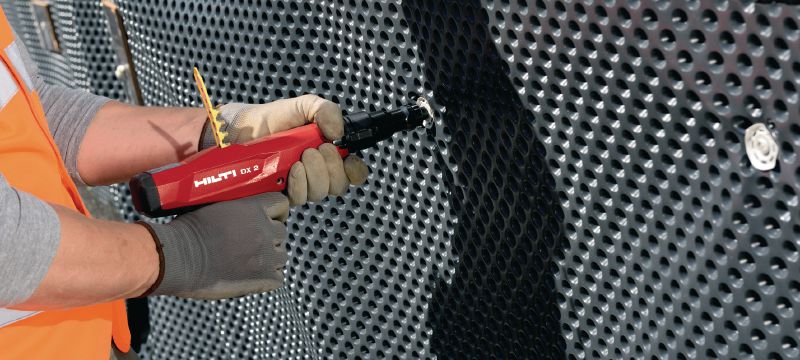

DX 2

Product Class

Premium

Galvanized nails for fastenings on concrete or steel
Knurled point for higher application limits on steel and suitability for use on hard concrete
High application limits, high ultimate tensile loads
One nail for almost any application
Uniquely shaped ballistic point for optimum driving characteristics
