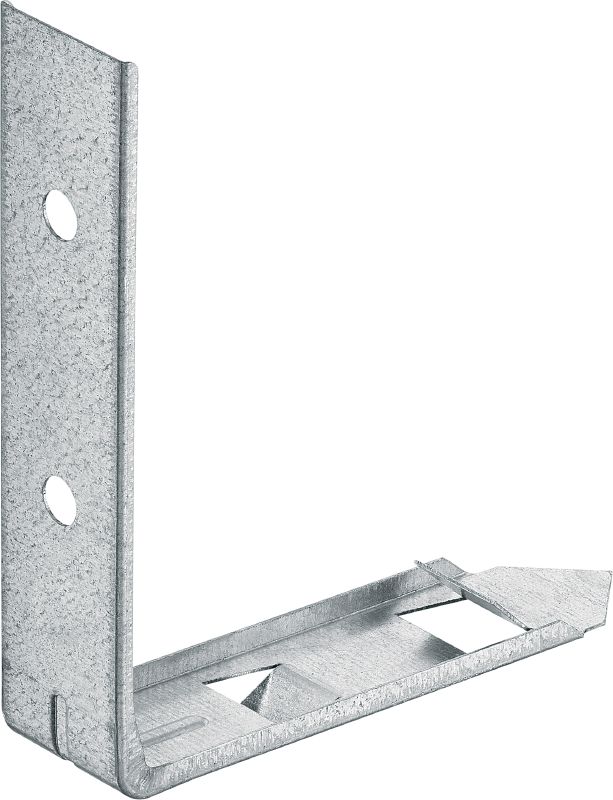

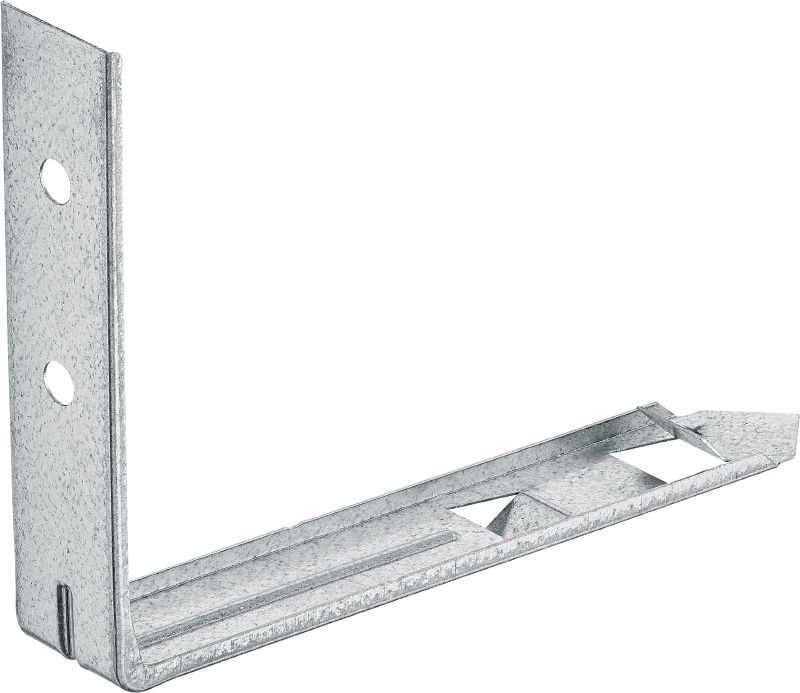

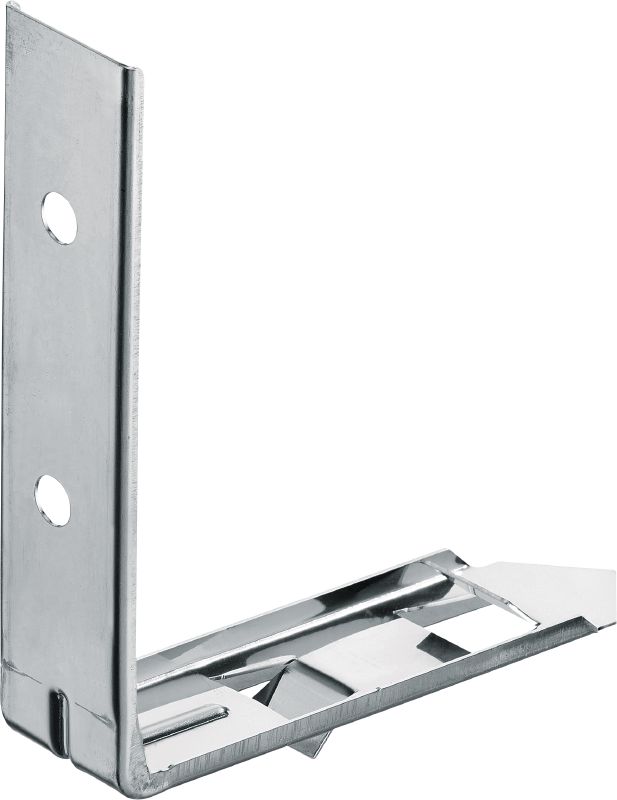

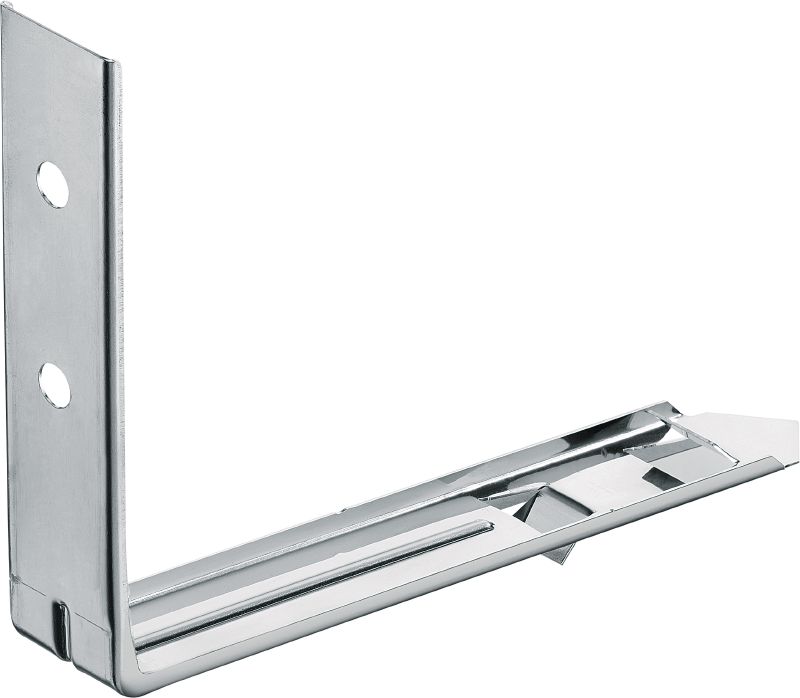

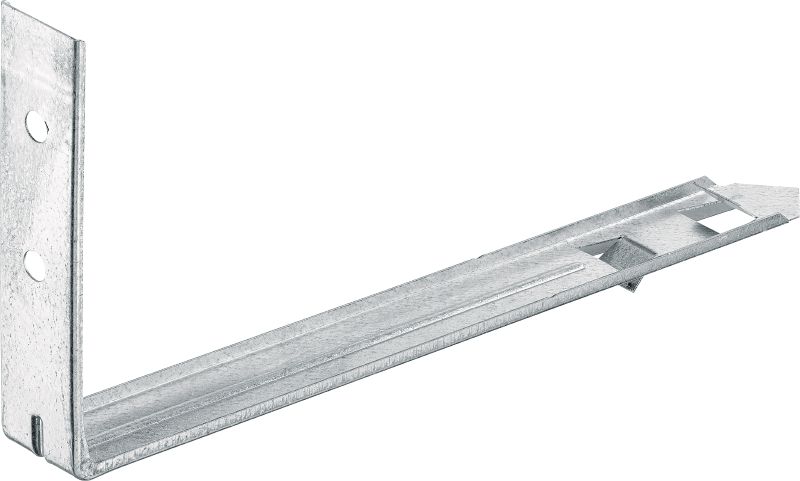

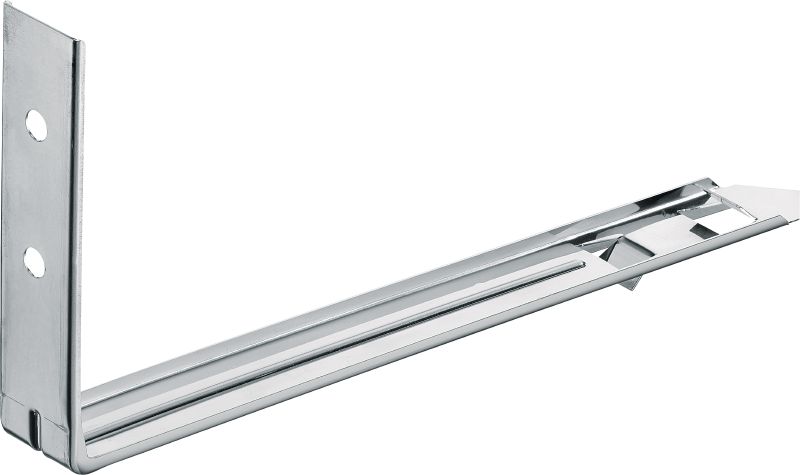

CFS-VB/NVB cavity barrier brackets
Pre-bent cavity barrier brackets for rainscreen cladding and non-ventilated façade applications, with push-to-fit system for faster installations
- Height: 130 mm
- Width: 30 mm
- Application: Cladding, Ventilated façade
Choose options
Material
- Hot Dip Galvanised Steel
- Stainless Steel
Device Size
- L
- M
- S
Pack size
- 60 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Height
130 mm
Width
30 mm
Application
Cladding, Ventilated façade
Base materials
Concrete, Masonry, SFS
Storage and transportation temperature range
-20 - 60 °C
Shelf life
Unlimited 1
- at 77°F/25°C and 50% relative humidity; from date of manufacture
Features & Applications
Features
- Faster installations – new push-to-fit bracket system eliminates bending, cutting and trimming, so you can install much faster than standard brackets
- Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
- Multiple finishes – available in stainless steel or hot-dip galvanised steel depending on your application
- Direct fastening tested – combine with our range of direct fastening solutions for even faster installations
Applications

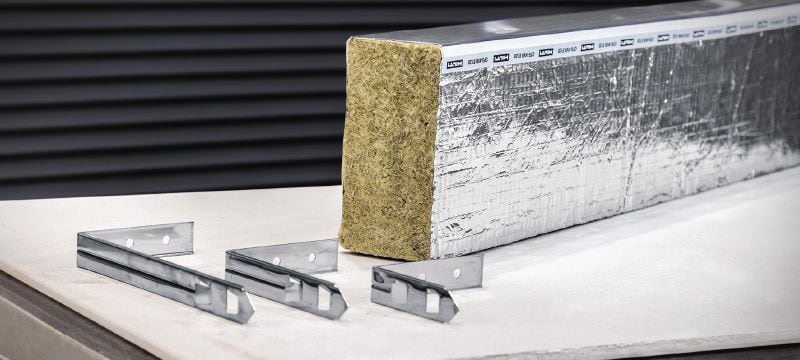

- Installing cavity barriers for rainscreen cladding and non-ventilated façade applications
- Available in three different sizes (S, M and L) depending on your barrier size (see instructions for use for more details)
For approval or certificate information, please see individual items.
