CFS-NVB E120 cavity barrier board (non-ventilated)

Cavity barrier CFS-NVB E120 FB #2395774

Configurator
Technical Data
Documents
Features & Applications
Related Products

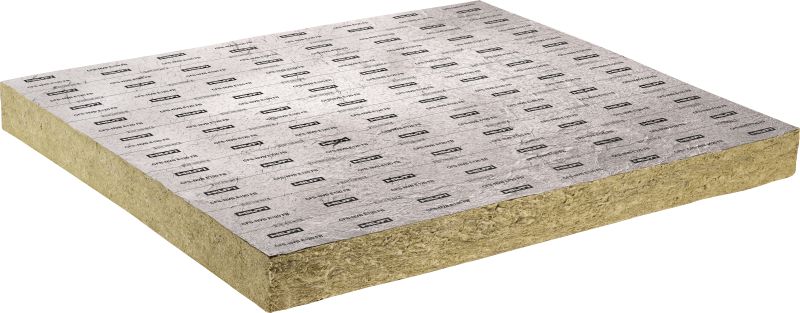

Still life picture of CFS-NVB E120 FB cavity barrier

Pre-formed fire cavity barrier (full board) for non-ventilated façade applications with 120 minutes of fire integrity

  • Length: 1200 mm
  • Height: 100 mm
  • Width: 1000 mm

Choose options

Pack size
  • 20 pc
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Length
1200 mm
Height
100 mm
Width
1000 mm
Density
70 kg/m³
Weight
8.4 kg
Application
Cladding, Ventilated façade
Base materials
Concrete, Masonry, SFS
Mold and mildew performance
Class 0 (ASTM G21, ISO 846 Method A)
Storage and transportation temperature range
-20 - 60 °C
Shelf life
Unlimited 1
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

Material safety datasheet
Sustainability Documentation
pdf Material safety datasheet Mineral wool products FP (AR) [ 350.2 KB ]
pdf Material safety datasheet Mineral wool products FP (EN) [ 232.5 KB ]

Features & Applications

Features

  • One-size-fits-all – full board solution allows you to cut barriers to the size you need, helping avoid material waste
  • Faster installations – new push-to-fit bracket system eliminates bending, cutting and trimming, so you can instal more barriers per day than previous solutions
  • Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
  • Extensive test evidence – tested and approved for a wide variety of Speciality applications
  • Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for non-ventilated façades

Applications

  • Sealing building envelope cavities to better prevent the spread of fire via the façade
  • Firestopping ventilated rainscreen cladding vertically
  • Firestopping non-ventilated rainscreen cladding vertically and horizontally
  • Verified fire resistance for 120 minutes integrity and up to 60 minutes insulation according to European Standard (EN) 1366-4
