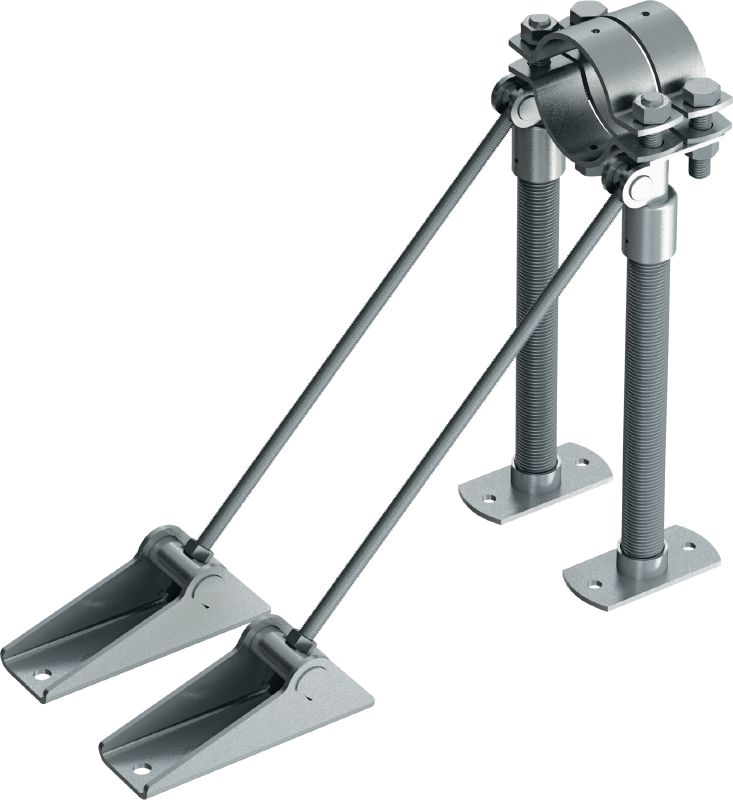

MFP-UHD Fixed point universal heavy
Galvanized double fixed point with one-sided bracing for heavy-duty applications up to 36 kN
- Material composition: Steel
- Surface finish: Indoor Coated - Electro galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material composition
Steel
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Additional product information
Fmax (rec) = 36 kN, Welded stoppers required on all Fixed Points loaded with more than 14 kN
Base material type
Concrete
Documents
Features & Applications
Features
- Adjustable bracing angle and rotatable baseplate – helps to avoid hitting rebar
- One anchor size needed
- Easier to assemble and install
- Designed for easier retrofit installation
Applications

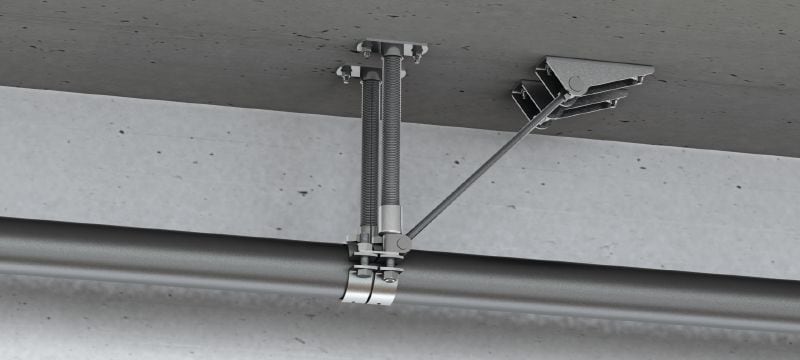

- Can be used in combination with MFP-PC fixed points pipe clamps
- Can be used in combination with MFP-KF refrigeration pipe clamps
- Given load values apply only when using Hilti HST and HUS anchors
- To be used in applications with pipes up to 2000 mm from base material
- To be used if force is in one direction only
For approval or certificate information, please see individual items.
