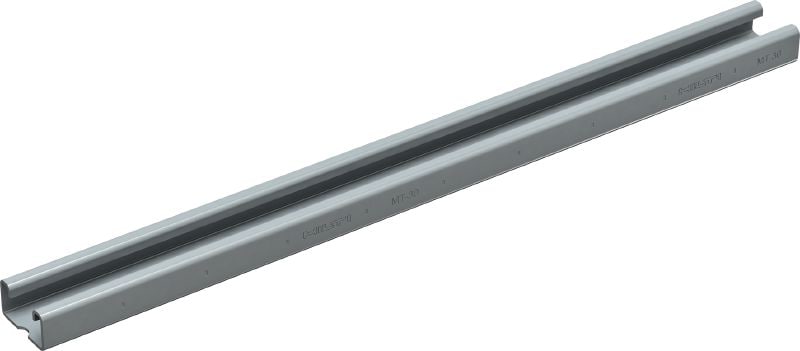

MT-30 OC C-Channel profile

I.-Channel MT-30 OC #2268500

Configurator
Technical Data
Documents
Features & Applications
Related Products
MT Channels, 2268499, 2268500
MT Channels

Medium-duty C-Channel profile for use with MT-FL/MT-TL components in outdoor environments

  • Material composition: S280 or better steel
  • Surface finish: Zinc-Magnesium - for outdoor use
  • Material thickness: 2 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
BD 37.12
BD 6.19
/
1 m

Technical Data

Details
Technical illustrations
Material composition
S280 or better steel
Surface finish
Zinc-Magnesium - for outdoor use
Material thickness
2 mm
Weight
8.92 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – optimizing logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to install – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Floor-mounted MEP support structures with lighter loads and limited spans, such as goal post-type strut framing
  • Ceiling-mounted MEP support structures with lighter loads and limited spans, such as suspended strut trapeze frames
  • Lightweight modular 3D framing to support pipes, ducts and cable trays
  • Suitable for use in moderately corrosive environments
