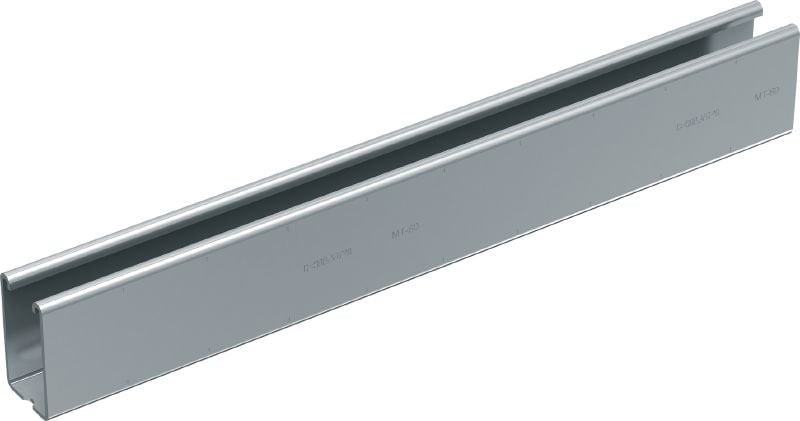

MT-60 C-Channel profile

I.-Channel MT-60 #2268514

Medium-duty C-Channel profile for use with MT-FL/MT-TL components in indoor environments

Pack size

Product options

Quantity

Packs

Total m

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

BD 110.22

BD 18.37

1 m

Technical Data

Material composition

S280 or better steel

Surface finish

Indoor Coated - Pre-galvanized

Material thickness

2.75 mm

Weight

23.12 kg

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

pdf ETA-23-0105 Static Fire MT Channels, English [ 3.1 MB ]

Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
Complexity kept to the minimum – optimizing logistical and on-site operations, as well as providing simplicity in installation
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to install – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
