MIC-U-MA Connector

IS_HNA_317_o.eps

IS_HNA_317_o.eps

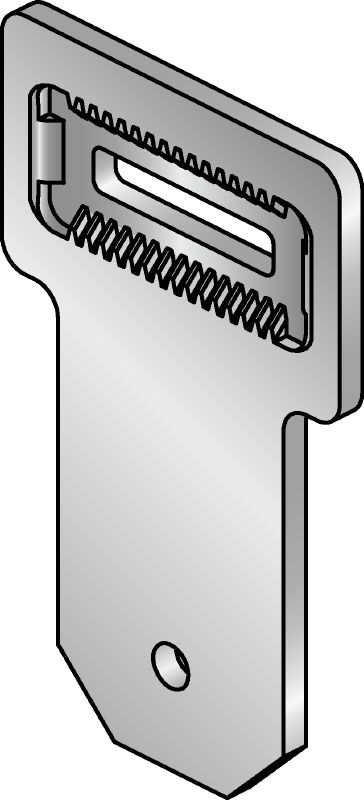

Hot-dip galvanized (HDG) multi-angle connector used with MIC-MAH connectors for fastening MI girders to one another at an angle

Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for kneebrace, brace, angle or swing.

Choose options

Modular Girder Type

90, 120

Pack size

2 pc

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From BD 162.08

Technical Data

Material composition

Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: Connector 55 µm - DIN EN ISO 1461; Tooth plate, Bolt, Nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

Connector comes with self-locking nuts to help protect against vibration
Can be finely adjusted by up to 5 mm
Keyed hold for optimum transmission of forces and moments

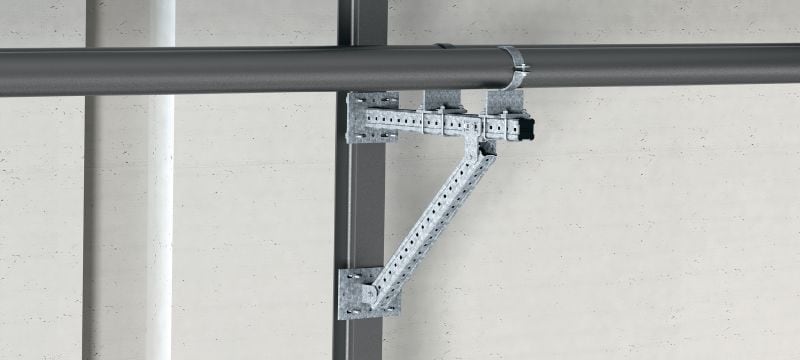

Applications

For supports/corner struts at angles between 0° and 180°
