MQN-C

Channel connector MQN-C #2184368

Push button MQN-C
MQN-C, MQA-ST, MQA-S
MQN-C, MQA-ST, MQA-S
MQN-C, MQA-ST, MQA-S
Push button MQN-C
Push button MQN-C
Push button MQN-C
Push button MQN-C
MQN-C, MQA-ST, MQA-S
MQN-C, MQA-ST, MQA-S
MQN-C, MQA-ST, MQA-S
Push button MQN-C
Push button MQN-C
Push button MQN-C

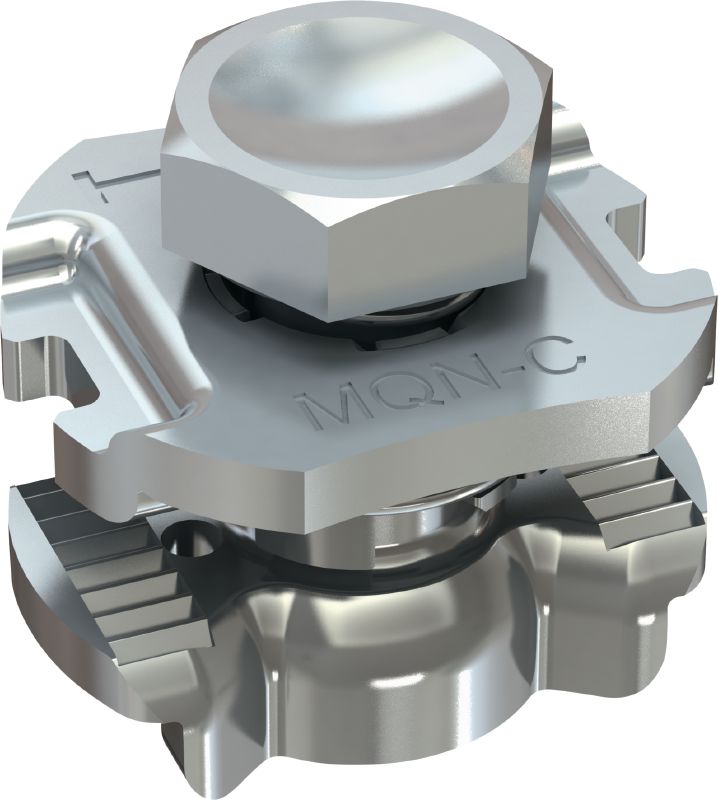

Galvanized channel connector for joining any elements with a butterfly opening

  • Product Class: Ultimate
  • Material composition: Plate: Steel S355J2 DIN EN 10025-2, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898
  • Surface finish: Indoor Coated - Electro galvanized
ultimate

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

BD 68.85

BD 1.38 / 1 each

Technical Data

Product Class
Ultimate
Material composition
Plate: Steel S355J2 DIN EN 10025-2, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
63 g

Documents

Features & Applications

Features

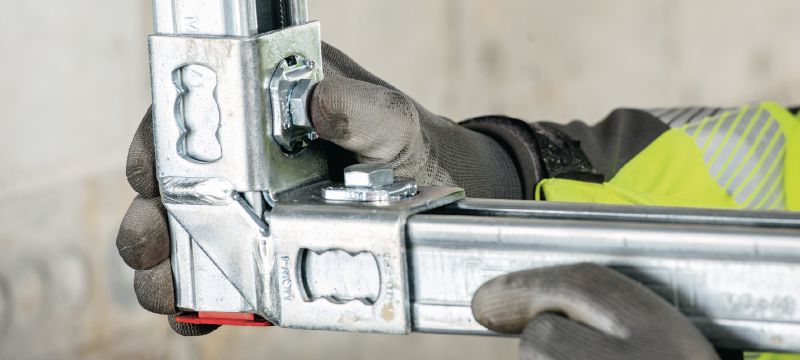

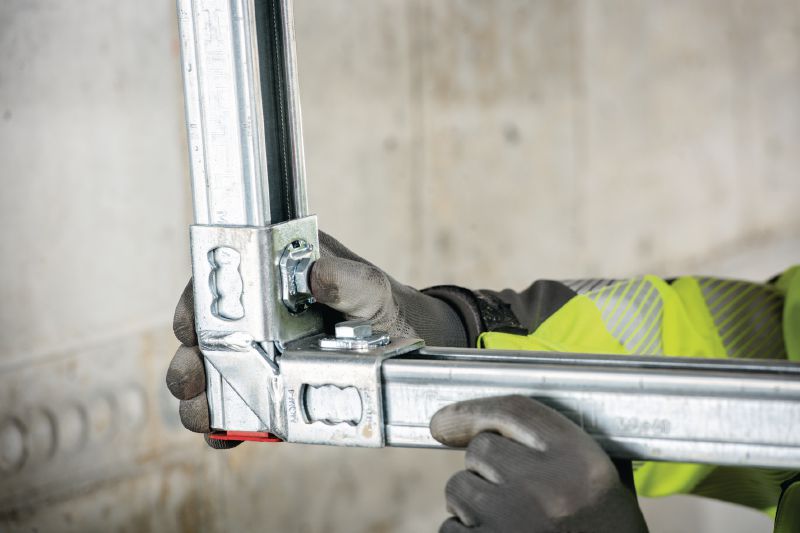

  • Extremely fast installation thanks to the push-only function
  • Designed to be simple, compact and time-saving
  • Holds securely once it has been pressed, turned and tightened correctly
  • Universal – one push button for all connectors and MQ channels
  • Fewer parts and high flexibility

Applications

  • Connecting angles to strut channels

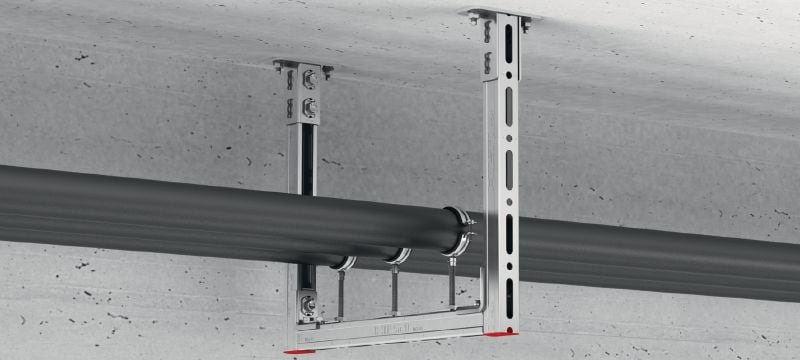

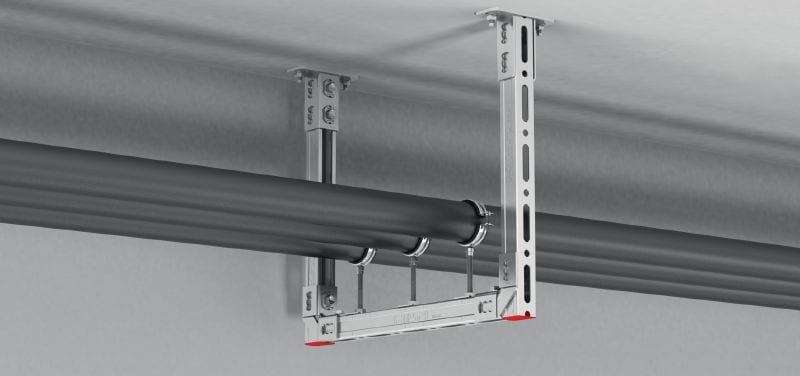

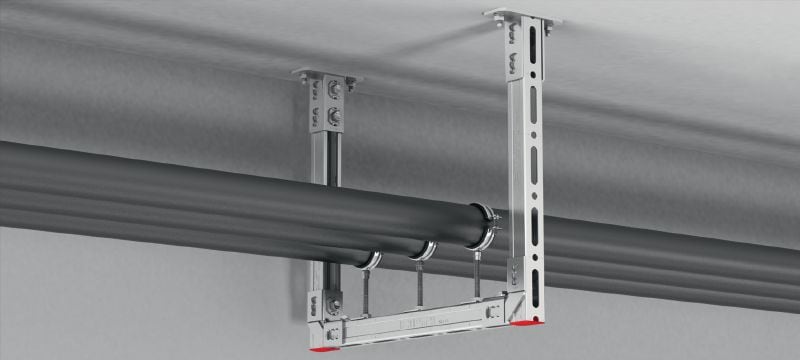

  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements
  • Connecting MQ brackets, angles and bases to MQ profiles
  • One-part fastener replaces a spring nut, bolt and washer for quick installation
