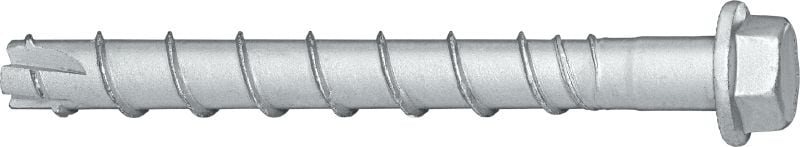

HUS3-HF Screw anchor
Screw anchor HUS3-HF 10x80 25/5/ #2079926
Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (multilayer corrosion protection, hex head)
- Material, corrosion: Carbon steel, multilayer coating
- Head configuration: Hex head
- Socket size: 15 mm
Choose options
Anchor size - D
- 10 mm
Anchor length - L
- 80 mm
Pack size
- 50 pc
Quantity
Packs
Total Pieces
50
Discounted net
BD 81.45
BD 1.63 / 1 each
Technical Data
Material, corrosion
Carbon steel, multilayer coating
Head configuration
Hex head
Socket size
15 mm
Drill bit diameter
10 mm
Approvals / Test reports
DIBt, ETA, Fire, Seismic
Reusable (and removable)
Yes
PROFIS Software
Yes
Material composition
Steel, multilayer coating
Tested/approved for diamond drilling
No
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Hexagonal head with integrated washer for neat appearance when fastening through in-place parts
- Can be reliably set without need for a torque wrench – HSE product profile available
- Multilayer coating (≥14 µm) for additional corrosion resistance
- Three embedment depths for maximum design flexibility
Applications

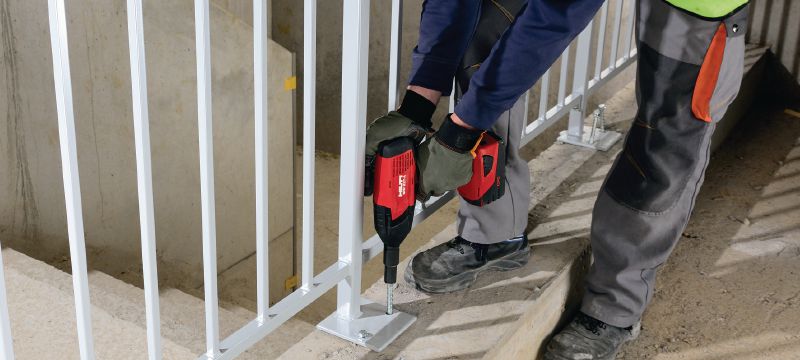

- Railings and handrails
- Fastening channels and brackets
- Base plate fastening in steel and metal construction
- Structural steel applications
